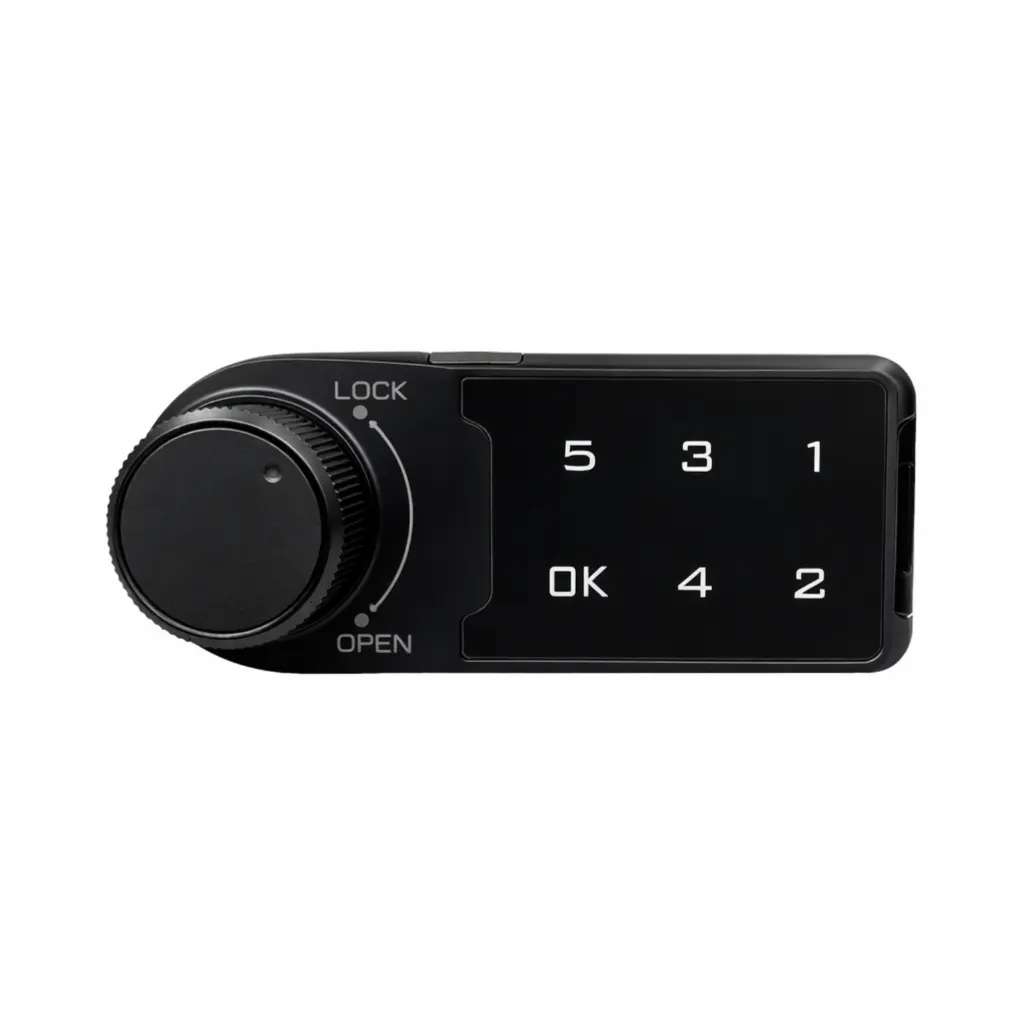

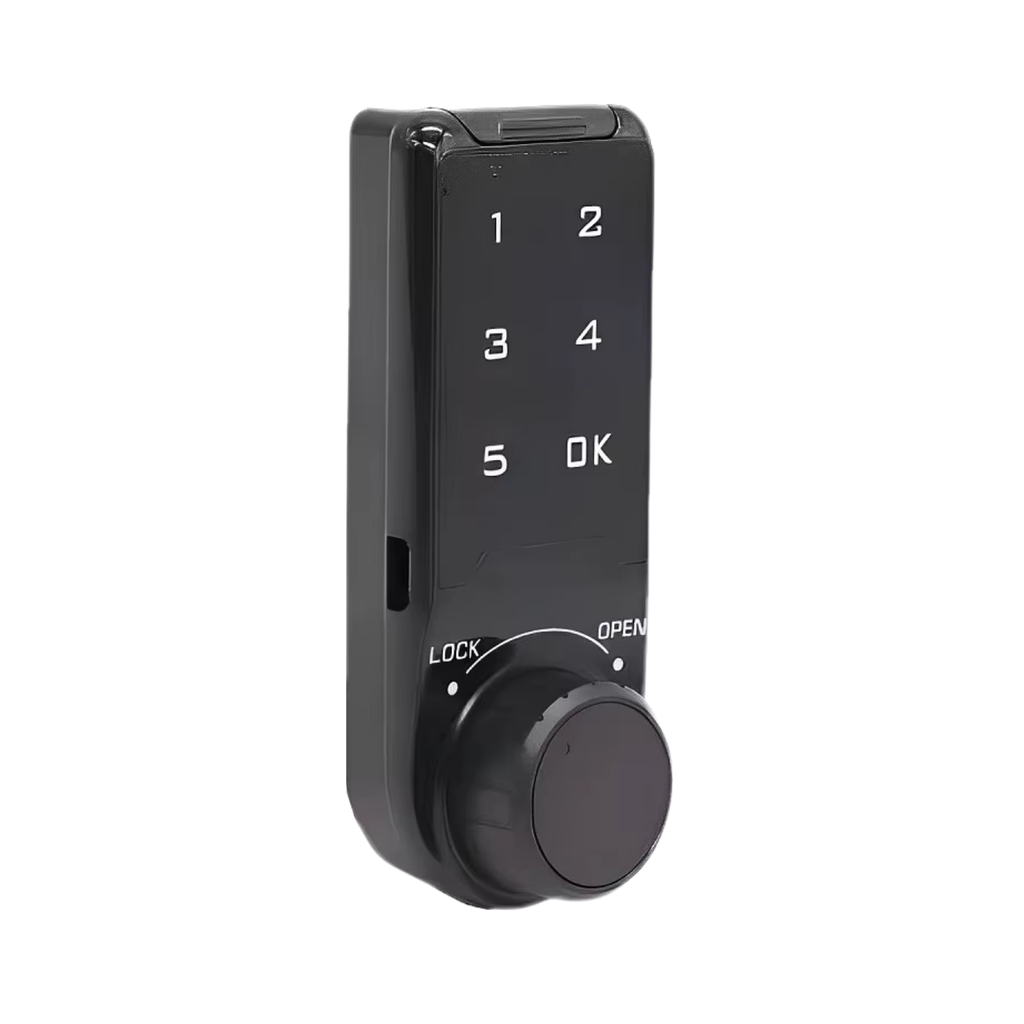

5 Digit Touch Pad Digital Lock (Public / Private)
This Touch Pad Lock is a medium frame system. With a minimalistic design, this lock is usable in both public and private settings, with a simple twist to open design.
5 Digit Touch Pad Digital locker lock features a touch screen keypad for PIN operation with Master Override Key.
5 Digit Touch Pad Digital is a great budgetary option that has the main standard features including the master override code. The 5 Digit Touch Pad Digital can be switched between public and private mode freely, with a visual in use indicator to show when the locker is occupied.
Passwords can be consisted of 4-15 digits, and can be set and changed by users easily. Made from quality black ABS plastic housing, the 5 Digit Touch Pad Digital is a reliable and budget-friendly locker lock that is suitable for most applications.
User and Programming are done by Secure Lockers at time of installation.

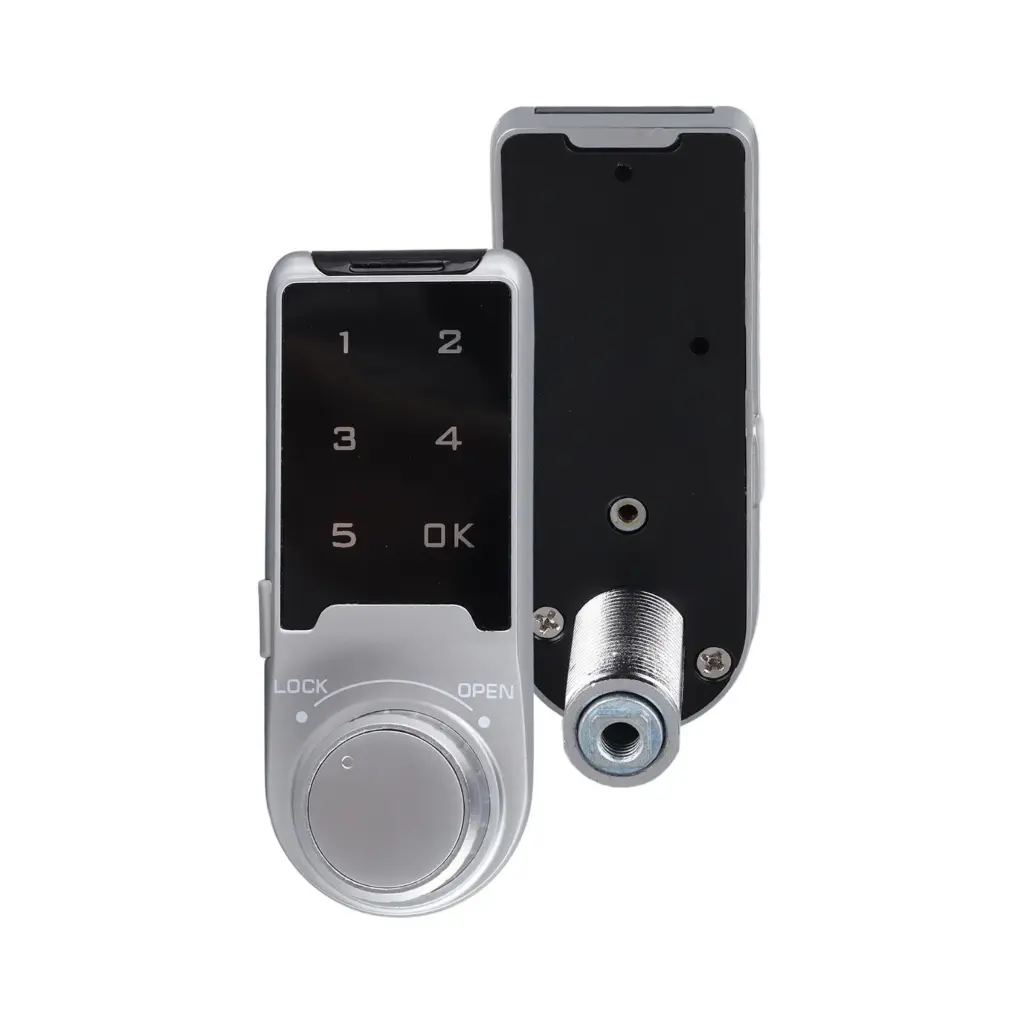

Colour Options: Black or Silver

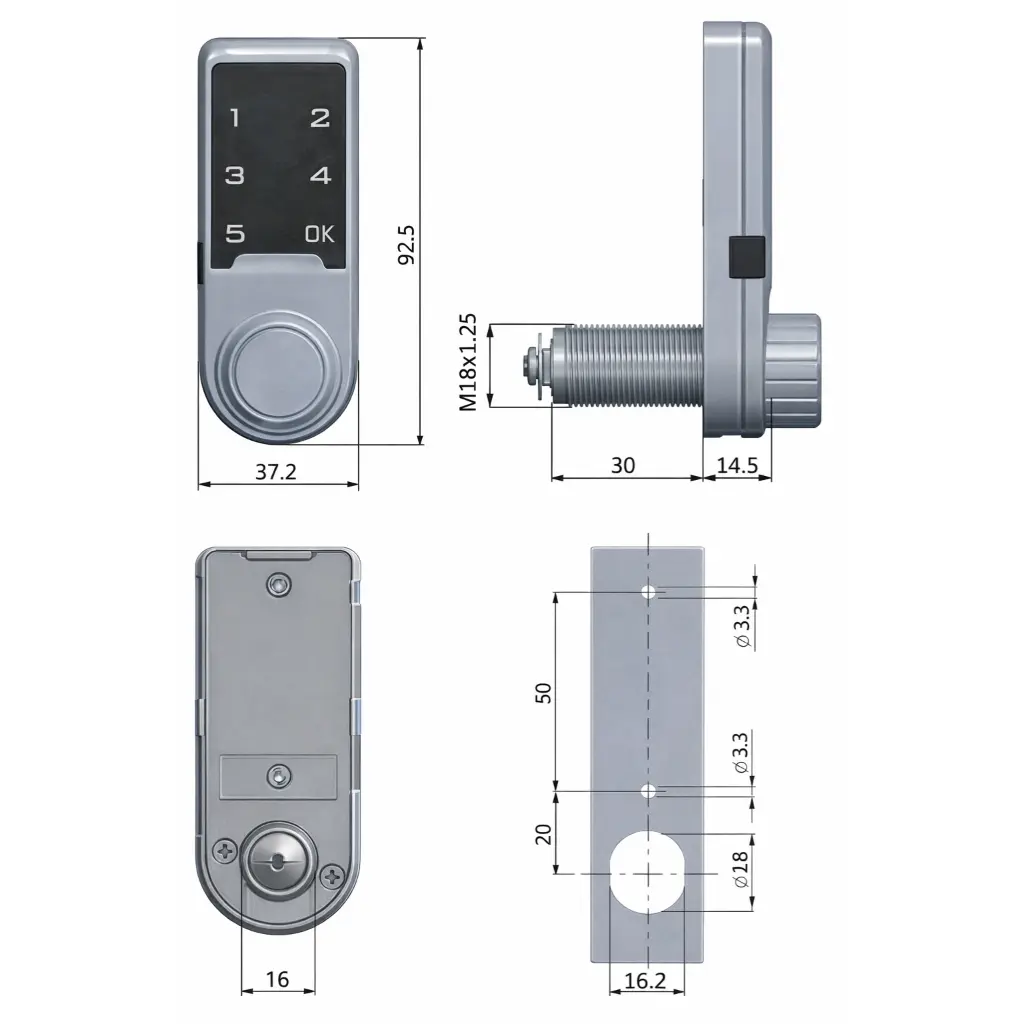

Lock Dimensions: 92.5 x 37.2mm

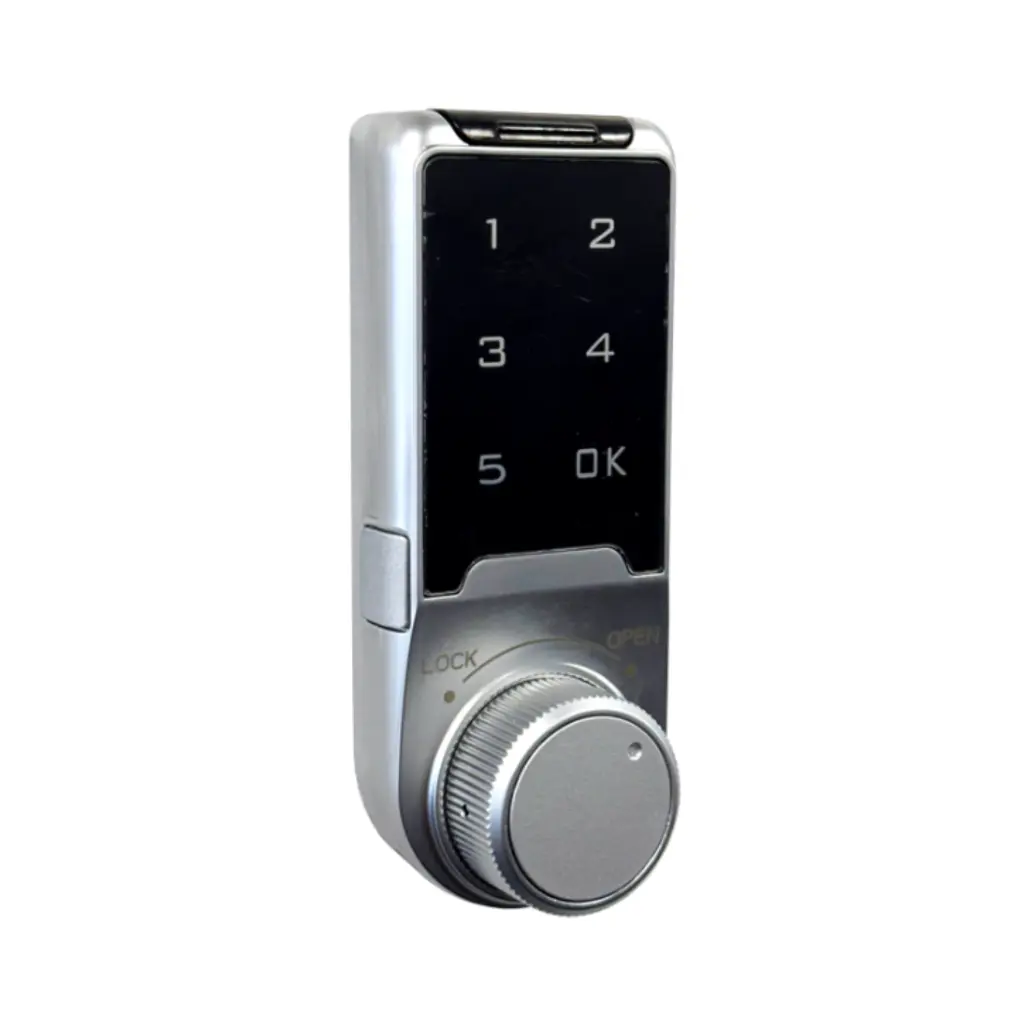

Fitting options: Vertical or Horizontal right handed.
Simple TouchPad unlock functionality
Twist to open design
Codes between 4 and 15 digits long
Lock status indicator (Locked and unlocked)
Backlight display with clear numbers

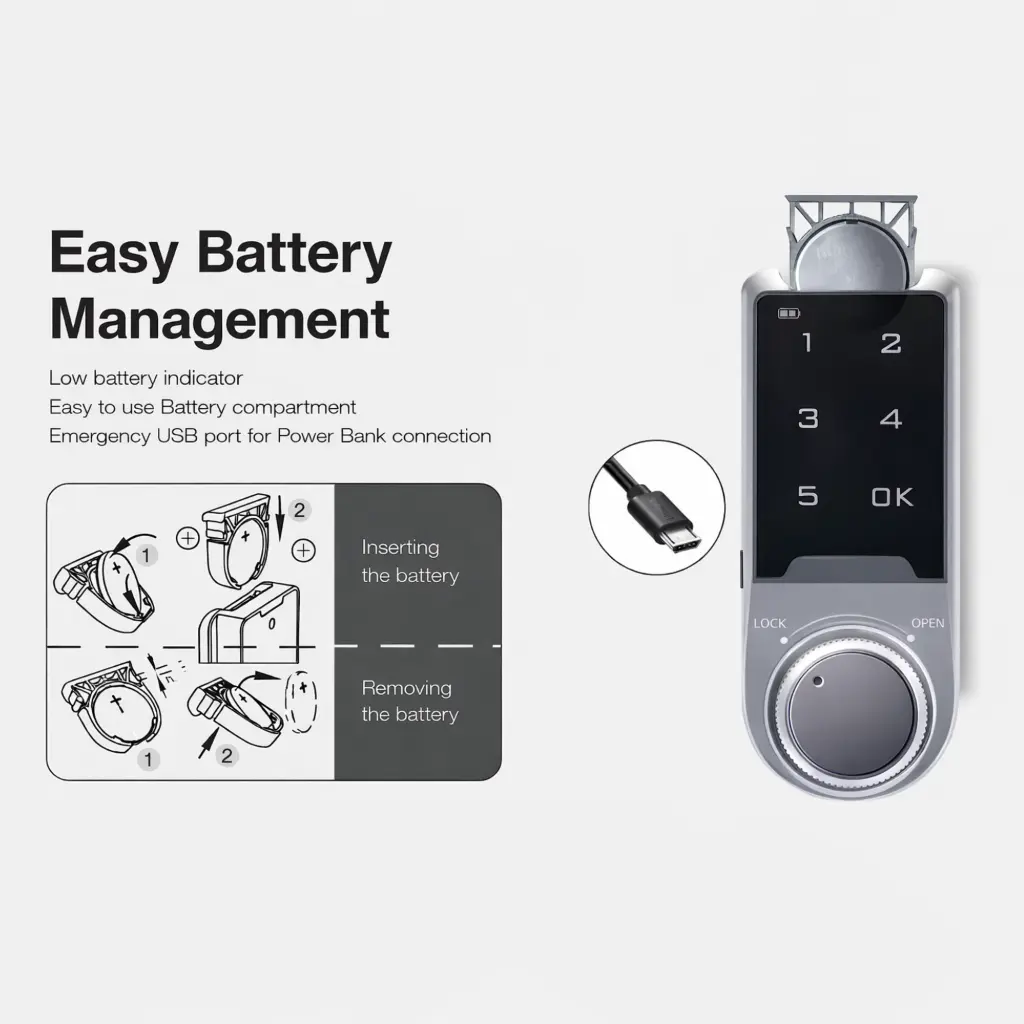

Powered by 1x CR2032 coin battery (not included) ~2,000 uses
Non-volatile memory when powered down or between battery changes
Automatic low battery prompts
Incorrect PIN alarm and keypad timed shutdown after four wrong attempts
Lock Dimensions: 92.5 x 37.2mm
Fitting options: Vertical or Horizontal right handed.
Simple TouchPad unlock functionality
Twist to open design
Codes between 4 and 15 digits long
Lock status indicator (Locked and unlocked)
Backlight display with clear numbers
Powered by 1x CR2032 coin battery (not included) ~2,000 uses
Non-volatile memory when powered down or between battery changes
Automatic low battery prompts
Incorrect PIN alarm and keypad timed shutdown after four wrong attempts
Interchangeable between public and private modes
16mm, 20mm or 30mm cylinder length available
External micro USB power port
1-year product warranty
- Lock Type: Digital Combination / Smart Lock
- Environment: Indoors,

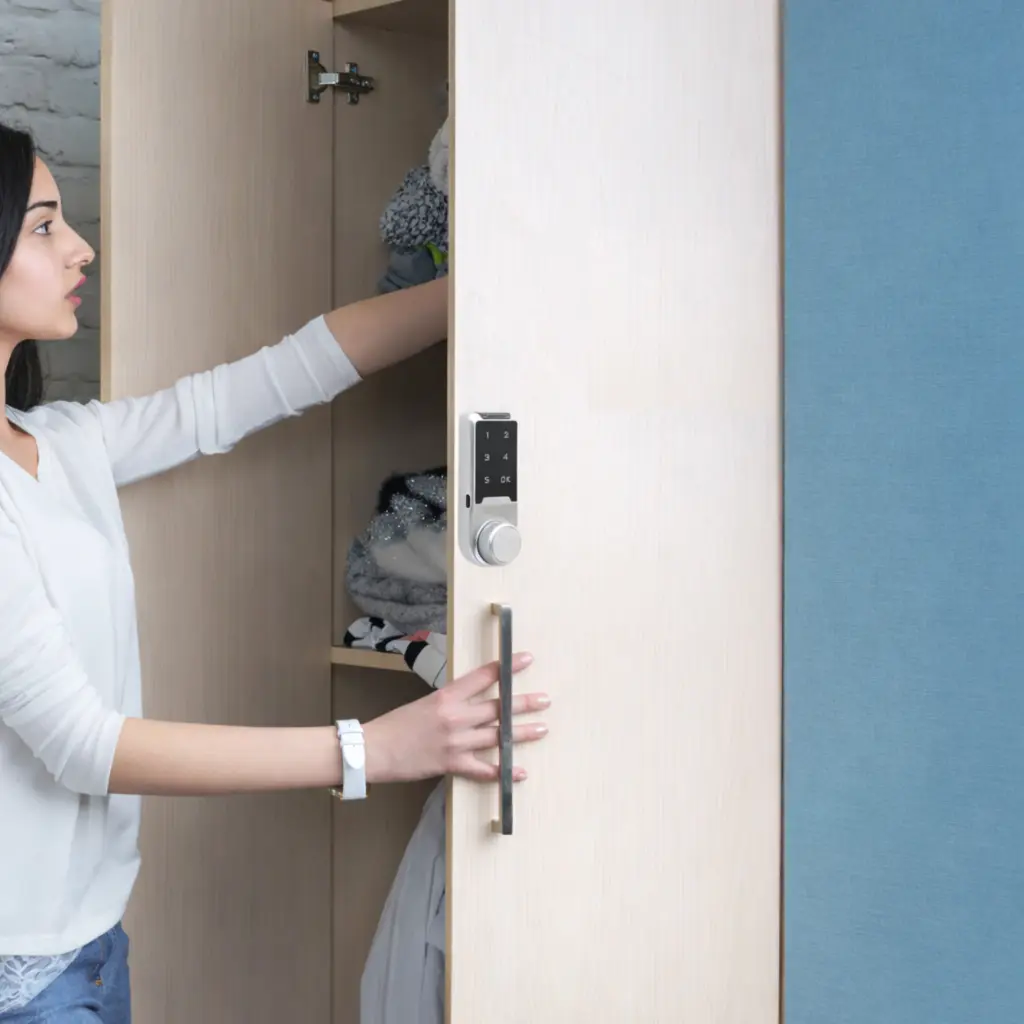

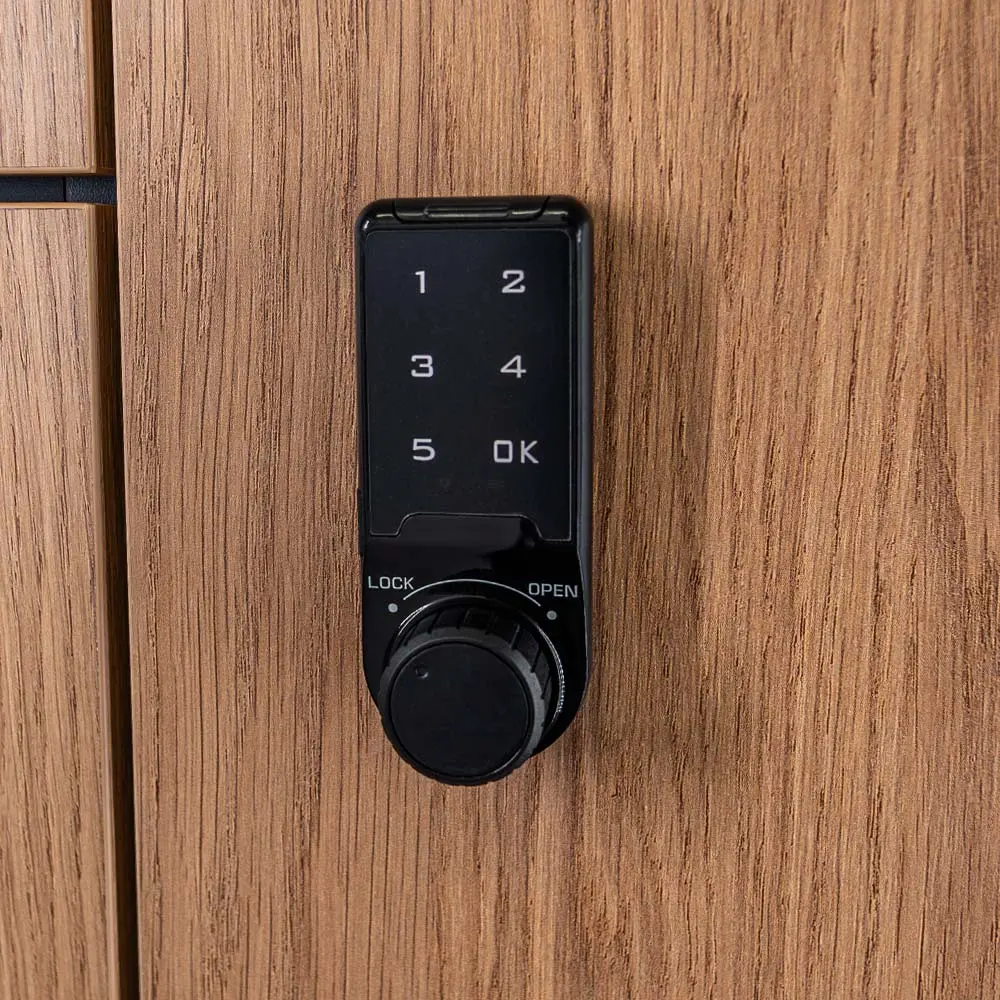

- Suitability: Metal Lockers, Plastic Lockers, Laminate Lockers
