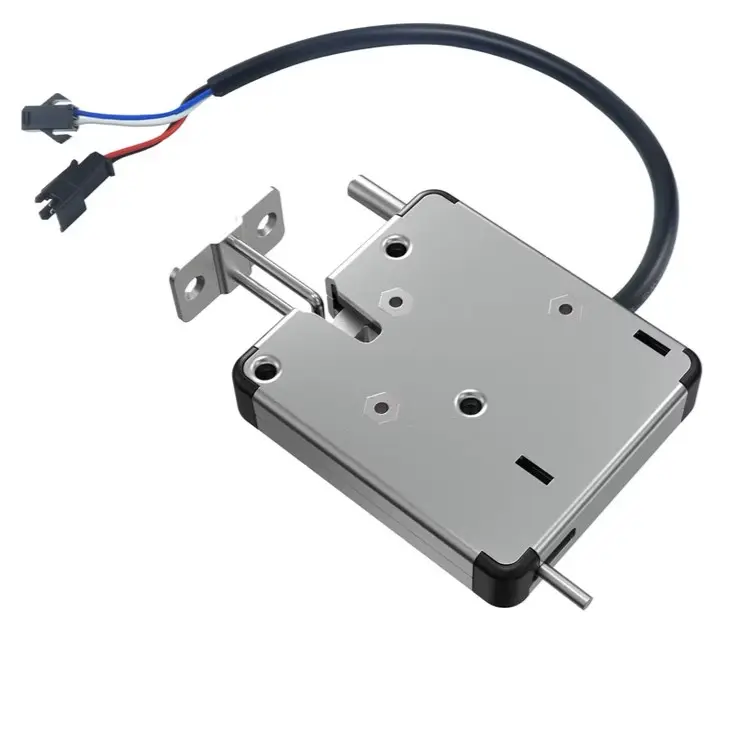

Invisible Electronic Solenoid Lock
The Invisible Electronic Solenoid Lock is a compact, high-strength locking solution designed for smart lockers, parcel systems, vending machines, charging cabinets, medical storage, industrial equipment, and other secure access applications.

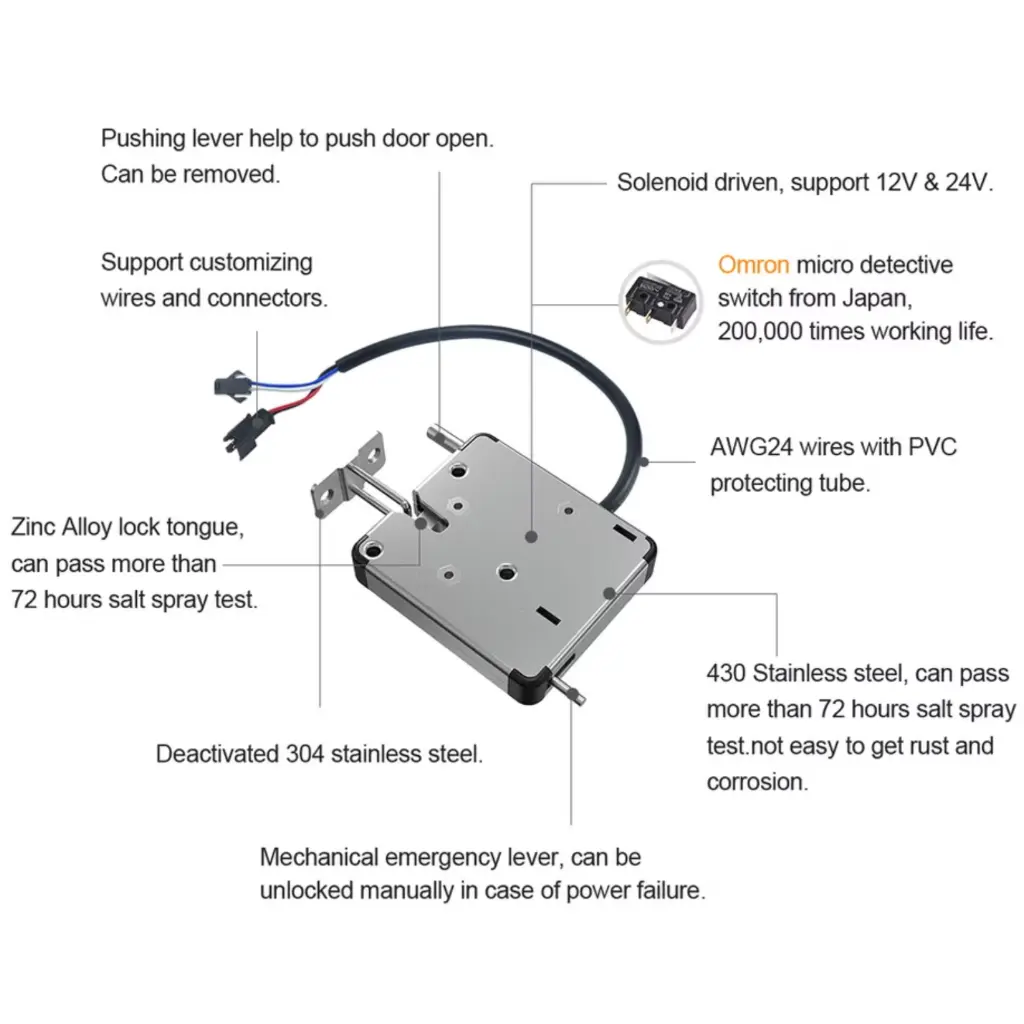

Engineered with a durable stainless steel lock body and proven rotary latch design, this lock delivers reliable electronic locking performance while remaining hidden from view for a clean, tamper-resistant installation. With a tensile strength of up to 5,000N and compliance with EN1627 anti-burglary requirements, it provides strong protection against forced entry and vandalism.
The lock features accurate door-position detection to help prevent premature locking and an anti-finger safety function, ensuring the lock can only be closed when the door is properly pushed shut. This helps improve user safety, reduce misuse, and support long-term reliability.
Designed for flexible integration, the lock supports 12V/24V DC operation, 2–6 wire input options, and multiple control signal configurations. It can be connected with TCP/IP, RS485, Bluetooth, NB-IoT, solar-powered control systems, and private locker control units, making it suitable for a wide range of smart locker and access control projects.
With a working life of over 200,000 cycles, corrosion-resistant materials, and CE, RoHS, and FCC certifications, this electronic lock is built for long-term performance in demanding commercial and industrial environments.
Key Features
- Concealed electronic lock design for improved security and aesthetics
- Strong 5,000N tensile strength for anti-burglary protection
- Anti-finger function prevents manual or tool-based lock closure
- Accurate door-position detection helps avoid early or incorrect locking
- Durable stainless steel, ABS, and PC construction
- Proven rotary latch mechanism for vandal-resistant performance
- 12V/24V DC operation for flexible system integration
- Supports 2–6 wire inputs and multiple signal configurations
- Compatible with TCP/IP, RS485, Bluetooth, NB-IoT, solar, and battery-powered systems
- Remote control and unlocking record support for access tracking and audit reporting
- Long service life of more than 200,000 operating cycles
- CE, RoHS, and FCC certified
Technical Specifications
Product Name: Invisible Electronic Solenoid Lock
Material: Stainless Steel + ABS + PC

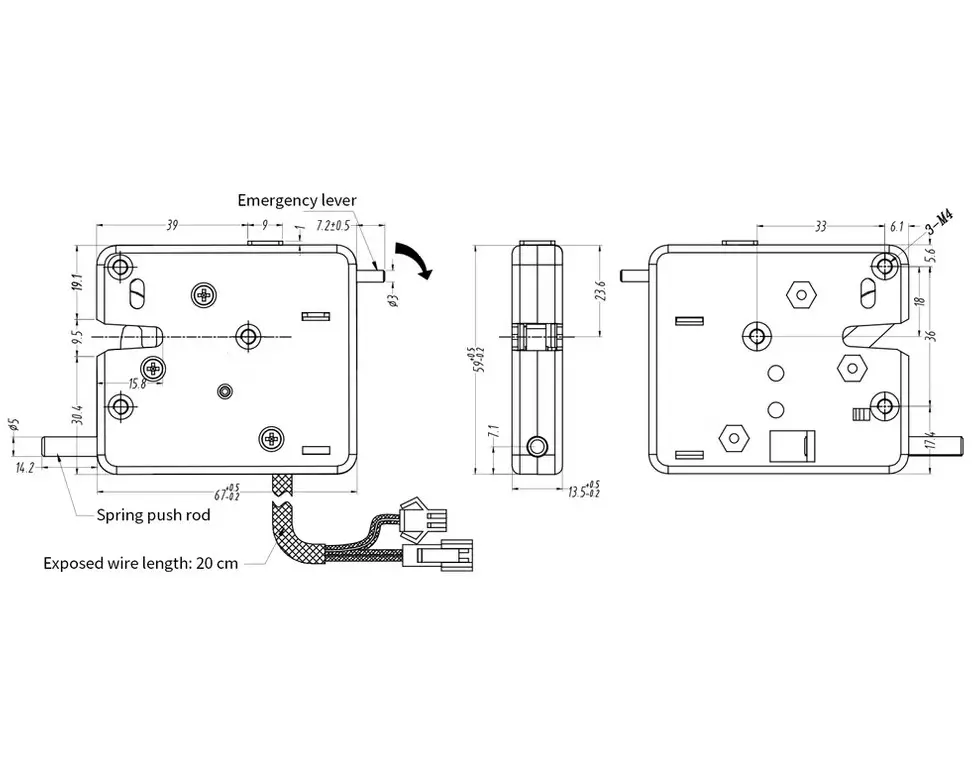

Size: 67 × 59 × 13.5 mm
Voltage: 12V / 24V DC
Drive Mode: Solenoid
Power Consumption: 28.8W
Working Temperature: -20°C to +60°C
Working Life: 200,000+ cycles
Tensile Strength: 5,000N
Certifications: CE, RoHS, FCC
Suitable Applications
This lock is ideal for use across medical, manufacturing, retail, office, education, hospitality, warehousing, and logistics environments.
Common applications include:
- Parcel lockers
- Solar-powered lockers
- Refrigerated lockers
- Storage lockers
- Bicycle lockers
- Motorised scooter lockers
- Vending machines
- Phone charging lockers
- Smart cabinets
- Private locker systems
Flexible Control System Options
The lock can be integrated into a variety of control systems, including TCP/IP, RS485, Bluetooth, NB-IoT, USB converter, solar-powered, and battery-powered solutions. This makes it suitable for both large-scale commercial locker networks and smaller private locker installations.

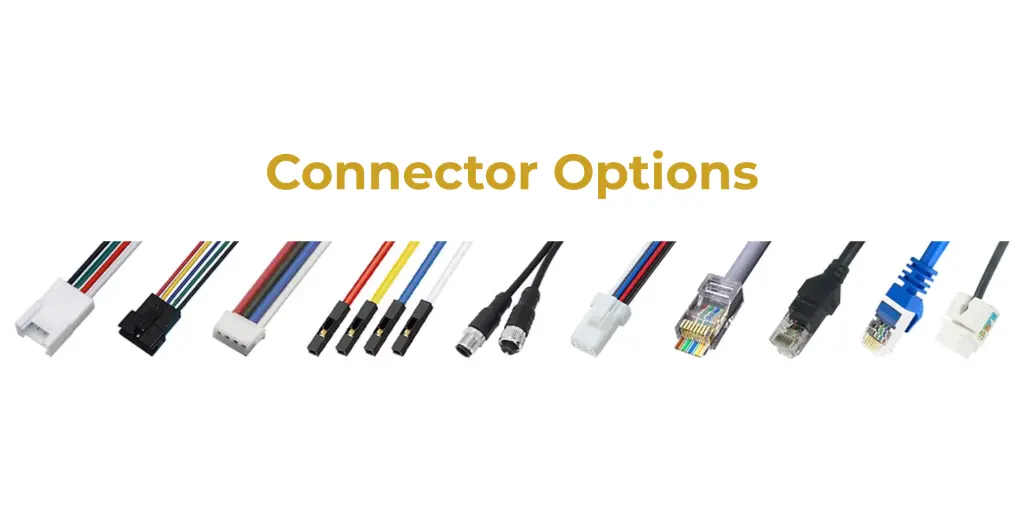

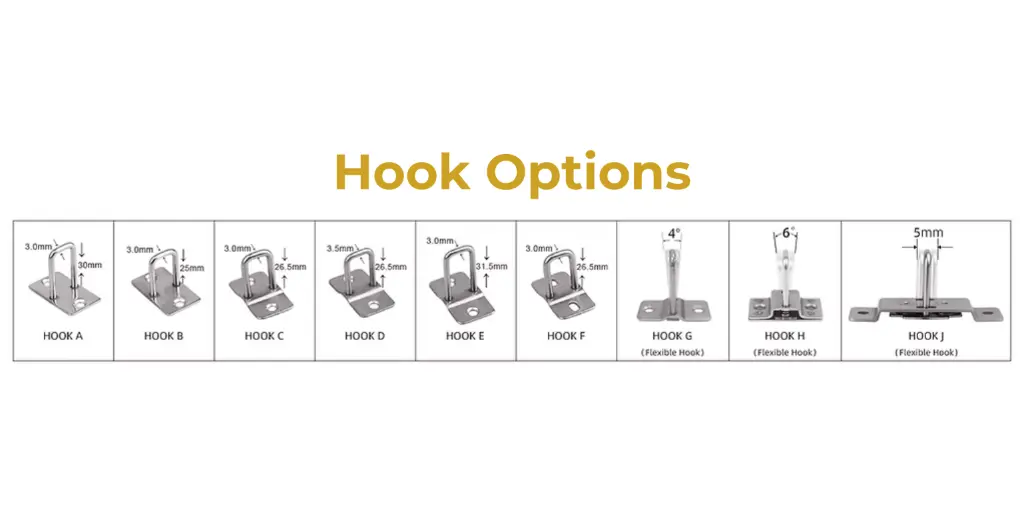

Custom wires, hooks, and connectors are also available to support project-specific requirements.
- Lock Type: Digital Combination / Smart Lock
- Environment: Indoors
- Suitability: Metal Lockers, Plastic Lockers, Laminate Lockers
