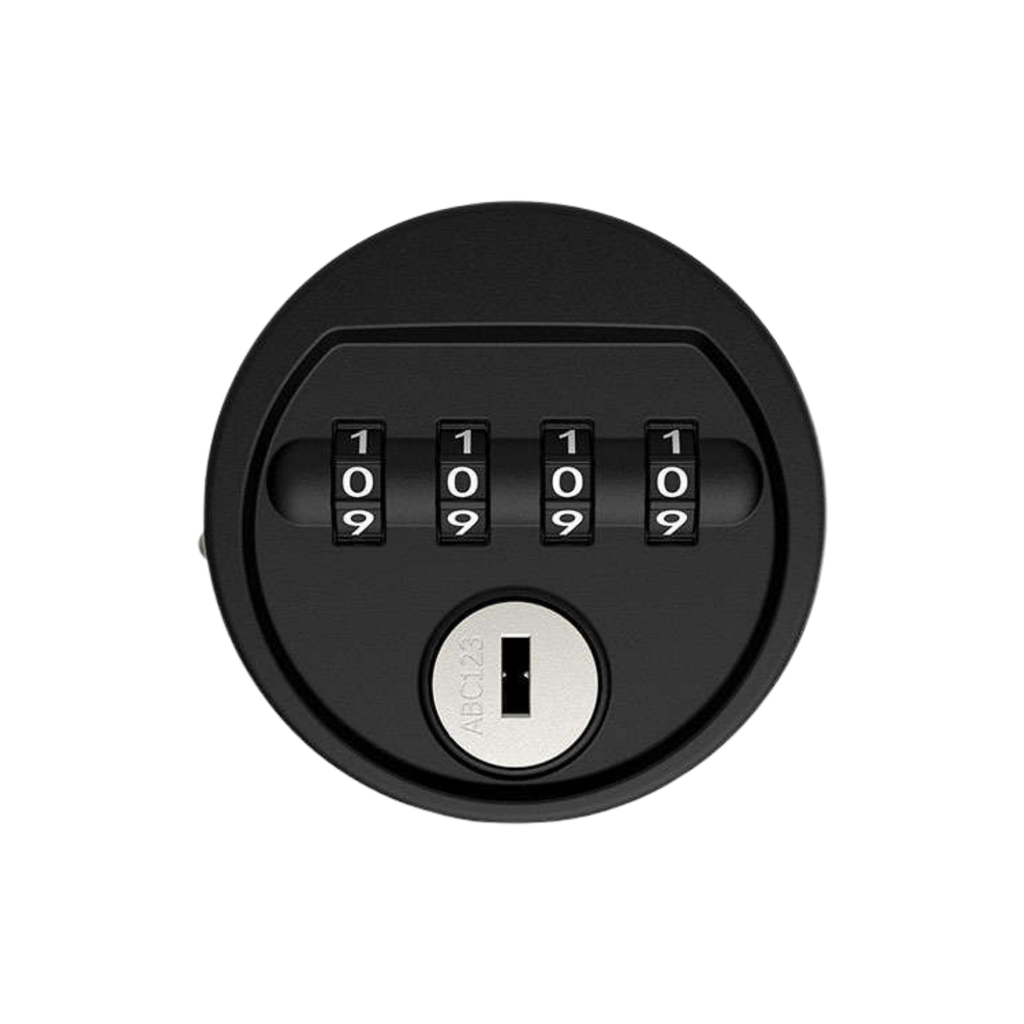

Lehmann Mechanical Dial Lock 60 - Private Mode
The Lehmann Mechanical Dial Lock 60 is a robust four-dial combination lock designed for dedicated or individually assigned lockers. Operating entirely mechanically, it requires no batteries, wiring or user keys, making it a simple and low-maintenance locking solution for schools, workplaces, end-of-trip facilities and other high-use environments.
In Private Mode, a four-digit combination is pre-set for the individual user and remains fixed during normal use. The combination cannot be changed from the front of the locker, helping provide controlled and consistent access for permanently allocated lockers.
Key Features
- Four-digit mechanical combination with 10,000 possible codes
- Private / dedicated mode for individually assigned lockers
- No batteries or wiring required
- No user keys to issue, replace or manage
- Master key override for emergency or management access
- Code retrieval and reset using the master key
- Automatic scramble function conceals the user's combination when the locker is closed
- Occupied indicator provides a quick visual indication of locker status
- Heavy-duty metal construction suitable for frequent use
- Left or right-hand operation with adjustable rotation
- Retrofittable to a wide range of locker applications
- Available in Black or White
How It Works
- Set the code - A four-digit combination is pre-set for the allocated user.
- Lock the locker - Turn the handle to lock. The dials automatically scramble so the combination is not left visible.
- Unlock - Enter the assigned four-digit code and turn the handle.
- Manager access - The master key can be used from the front of the lock for emergency access, code retrieval or resetting.
Specifications
Manufacturer: Lehmann
Function: Combination
Lock Type: Mechanical
Operating Mode: Private / Dedicated / Fixed
Combinations: 10,000 four-digit combinations
Material: Metal
Colours: Black or White
Locking Mechanism: Cam lock
Turning Angle: 90°
Rotation: Adjustable for left or right-hand operation
Door Thickness: 1-21 mm
Punching Pattern: 16 × 19 mm
Master Key Override: Yes
Code Retrieval: Yes, via master key
Retrofittable: Yes
Water Resistant: No
Dimensions: 60H × 60W × 30D mm
Warranty: 1 Year
Ideal For
A practical choice for staff lockers, workplace lockers, school lockers, gym lockers and end-of-trip facilities where lockers are permanently allocated to individual users.
- Lock Type: Mechanical Lock / Combination Lock
- Environment: Indoors
- Suitability: Metal Lockers, Plastic Lockers, Laminate Lockers
