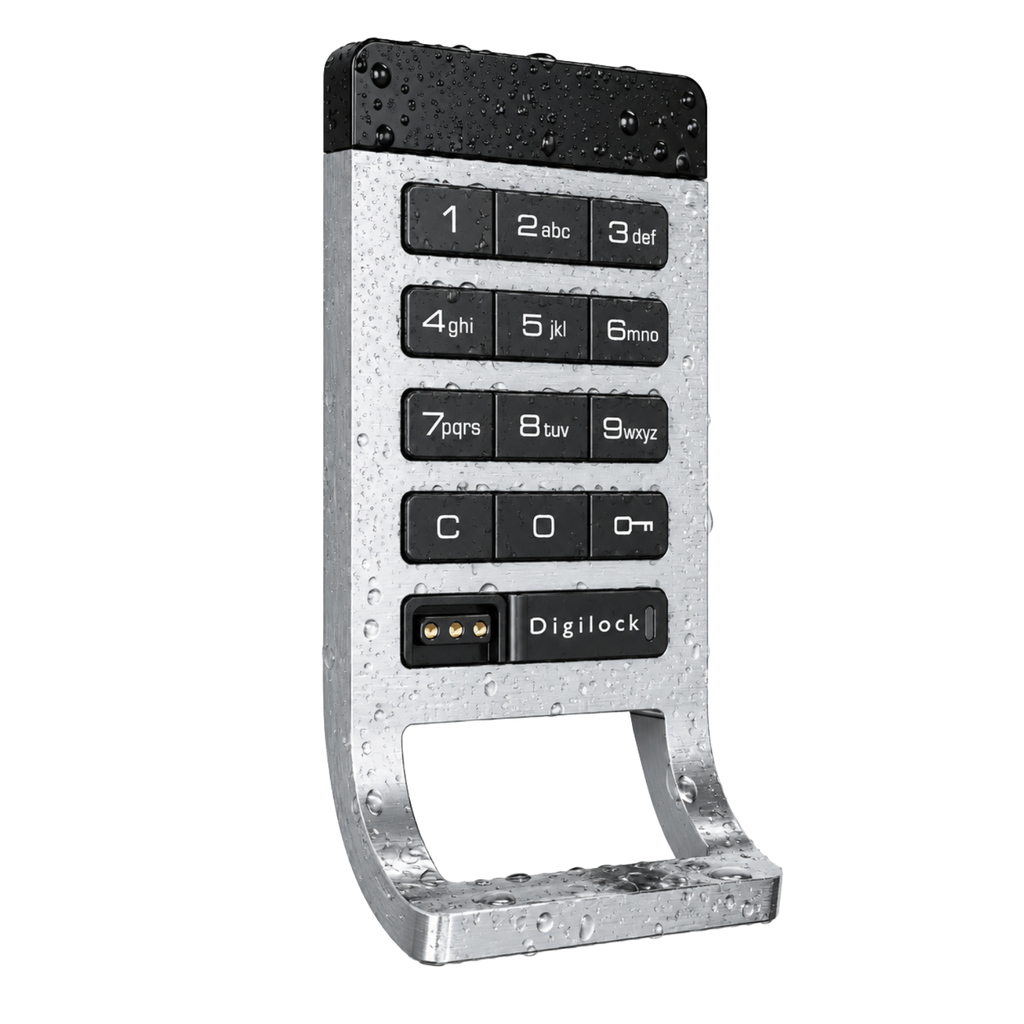

Wet Area Digilock Curve Digital Combination Lock

The Wet Area Digilock Curve Digital Combination Lock combines a slim, modern design with flexible keypad and Bluetooth access for lockers installed in humid and moisture-prone environments. Built for lockers, cabinets and personal storage, it allows users to unlock using a mobile credential or a secure 4-7 digit PIN code.

Its wire-free, surface-mounted design makes Curve suitable for new wet-area locker projects as well as upgrades to existing locker systems. The all-metal housing, motorised locking mechanism and IP55 rating make it a dependable option for aquatic centres, pool change rooms, gyms, end-of-trip facilities, spas and other high-use wet-area environments.

With an IP55-rated housing, the lock is protected against dust and water jets, making it suitable for changing rooms, aquatic centres, pool facilities, end-of-trip spaces and other damp indoor environments.

Available in brushed nickel or matte black, the distinctive curved pull handle provides a clean, integrated finish while remaining easy to operate.

Access Options

Users can access the lock using:

• A 4-7 digit keypad code

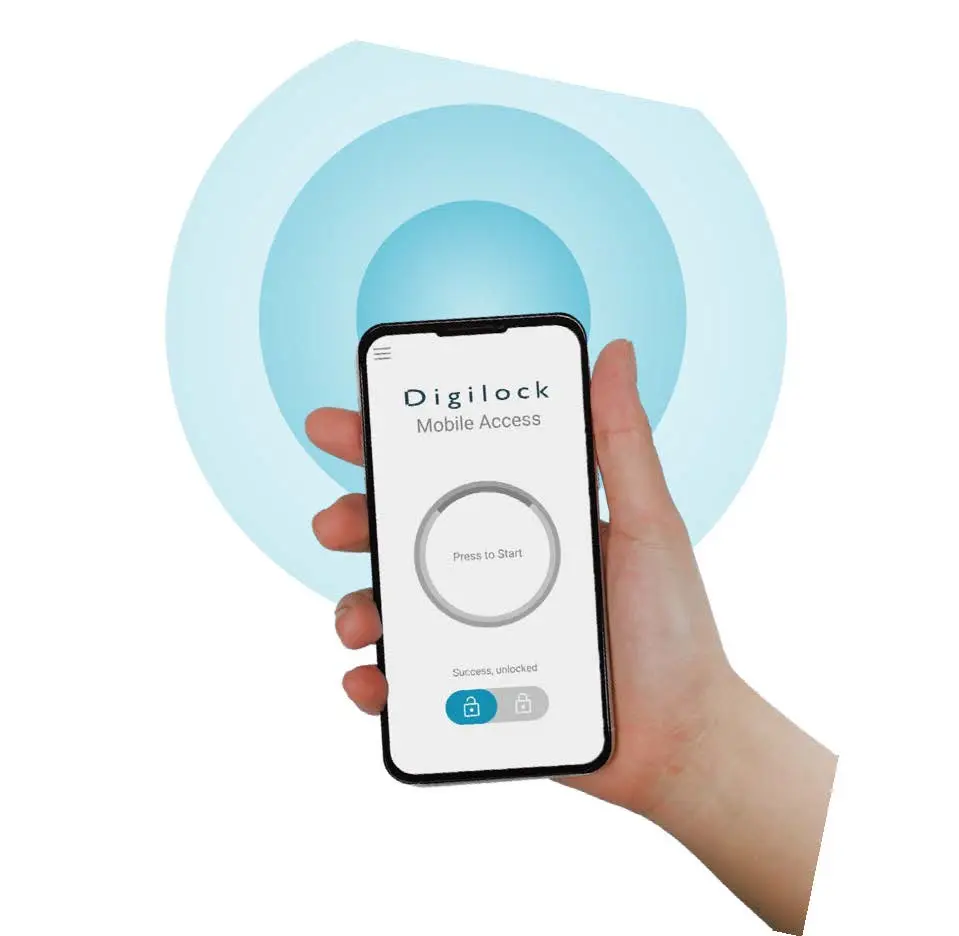

• A mobile credential through Bluetooth Low Energy
• Management override credentials

Visual and audible indicators provide clear feedback whenever a code or mobile credential is entered.

Shared Use Mode

Shared Use Mode is designed for day-use lockers where different people may use the same locker throughout the day.

The user selects an available locker and enters their own 4-7 digit code or presents their mobile credential to lock it. They use the same code or credential to reopen the locker. Once their belongings are removed, the locker becomes available for the next user.

This mode is ideal for aquatic centres, pool change rooms, gyms, end-of-trip facilities and other wet-area environments where lockers are not permanently assigned.

Assigned Use Mode

Assigned Use Mode is suited to lockers allocated to a particular employee, guest or regular user.

Management assigns one or more mobile credentials or PIN codes to the lock. The user enters their assigned code or presents their mobile credential to unlock the locker. Once the door is closed, the auto-relock function secures it again.

This makes Curve suitable for staff change-room lockers, health clubs, spas, aquatic facilities and other wet-area applications where ongoing access is required.

Lock Management Options

Basic Management

The Basic system uses electronic management keys for straightforward administration and emergency access.

It allows facilities to:

• Assign up to six manager credentials per system
• Assign up to 20 users to each lock
• Override and open locks when required
• Provide external power if the lock batteries are depleted

Networked Management

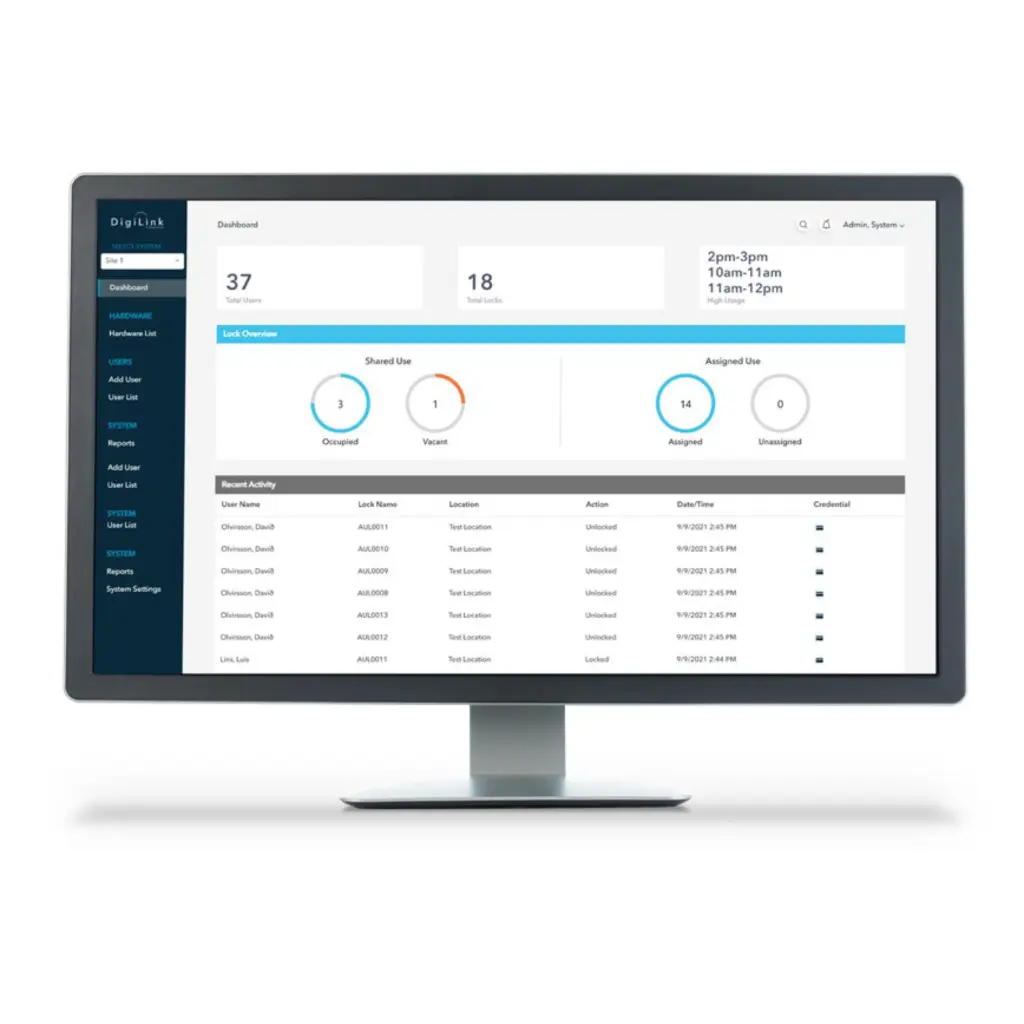

For facilities requiring central control, Curve can be connected to the DigiLink cloud-based management platform.

The networked system allows authorised administrators to:

• Manage locks, users and access remotely
• Add or remove credentials
• View locker availability and occupancy
• Access audit trails
• Review usage data and reporting
• Manage multiple locker locations from one dashboard

Networked systems can also support additional workflows such as parcel collection and locker reservation modes.

Key Features

• Keypad and Bluetooth Low Energy access
• User-selected or assigned 4-7 digit PIN codes
• Ultra-slim surface-mounted design
• Battery-powered and wire-free
• All-metal housing
• Motorised deadbolt or deadlatch mechanism
• Shared Use and Assigned Use operating modes
• Automatic relocking in Assigned Use Mode
• Visual and audible indicators
• Auto-unlock functionality
• Suitable for different door thicknesses
• Accessible and ADA-compatible options available

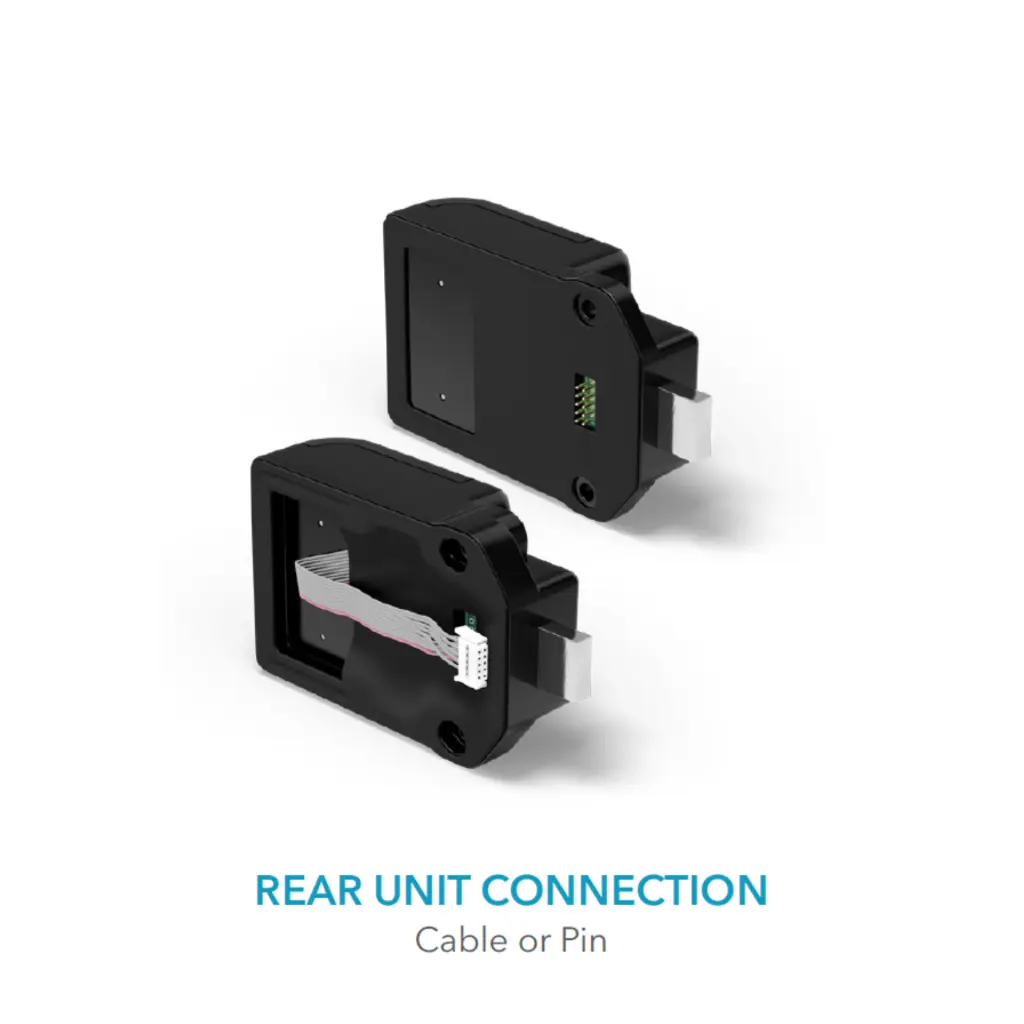

• Cable or pin rear-unit connection
• IP55 rated for protection against dust and water jets
• Suitable for humid, damp and moisture-prone indoor environments
• FCC, CE and IC certified
• Two-year warranty

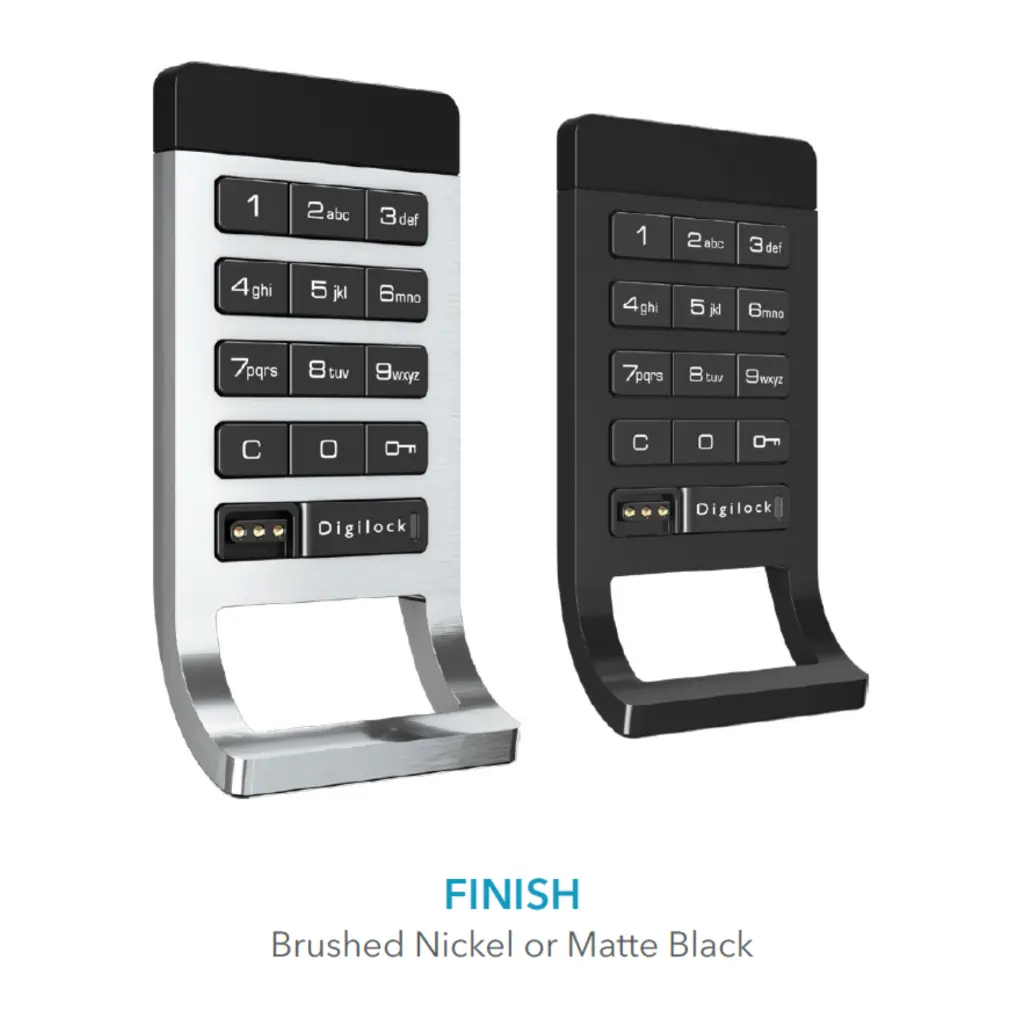

Finish Options

• Brushed nickel
• Matte black

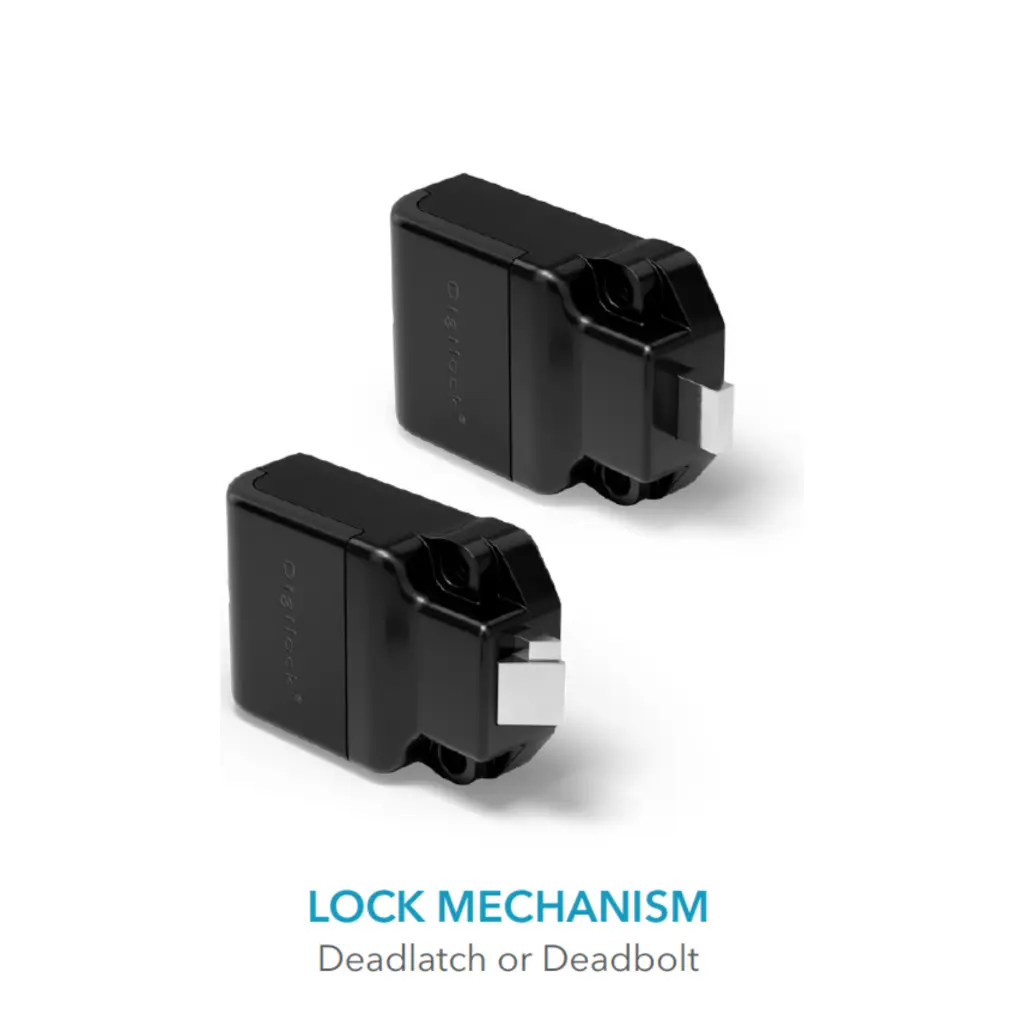

Locking Options

• Motorised deadlatch
• Motorised deadbolt

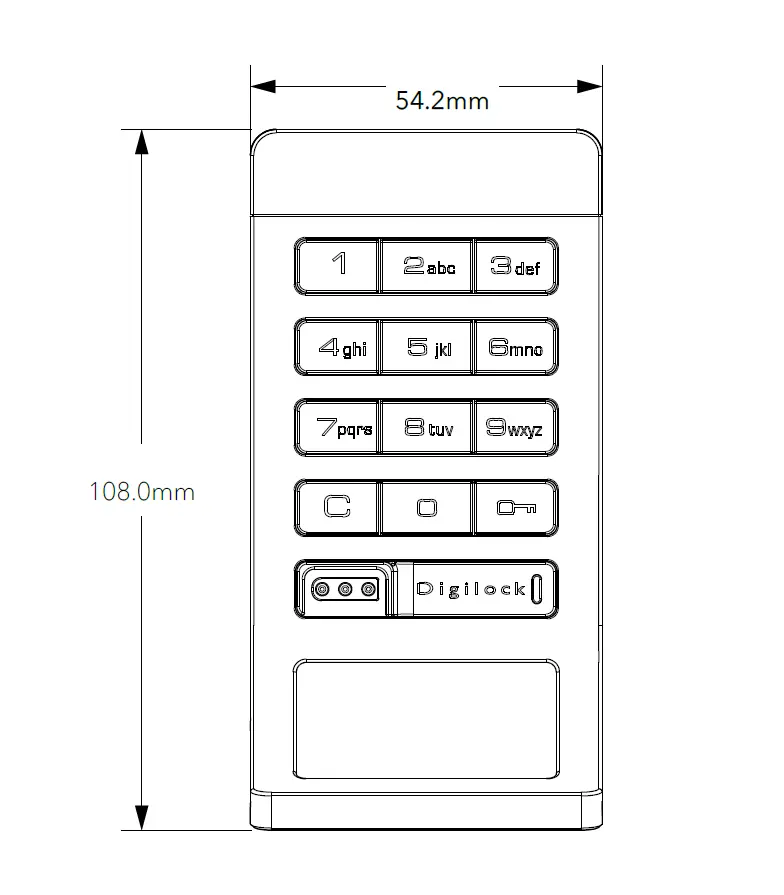

Dimensions

• Overall height: 108 mm
• Overall width: 54.2 mm

Suitable Applications

The Digilock Curve Digital Combination Lock is well suited to:

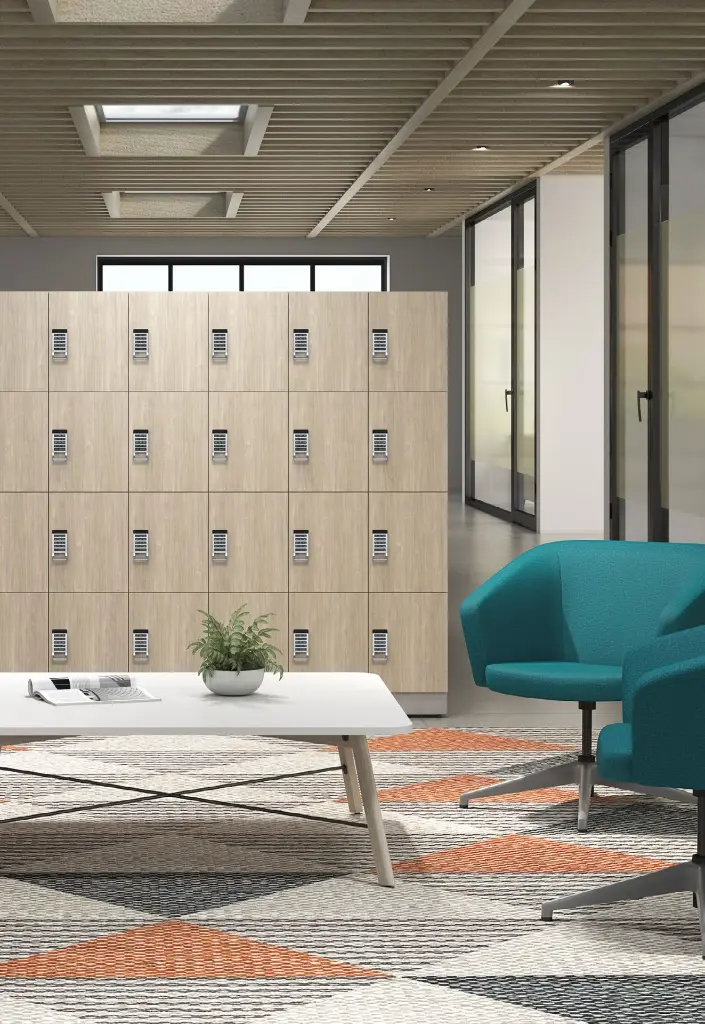

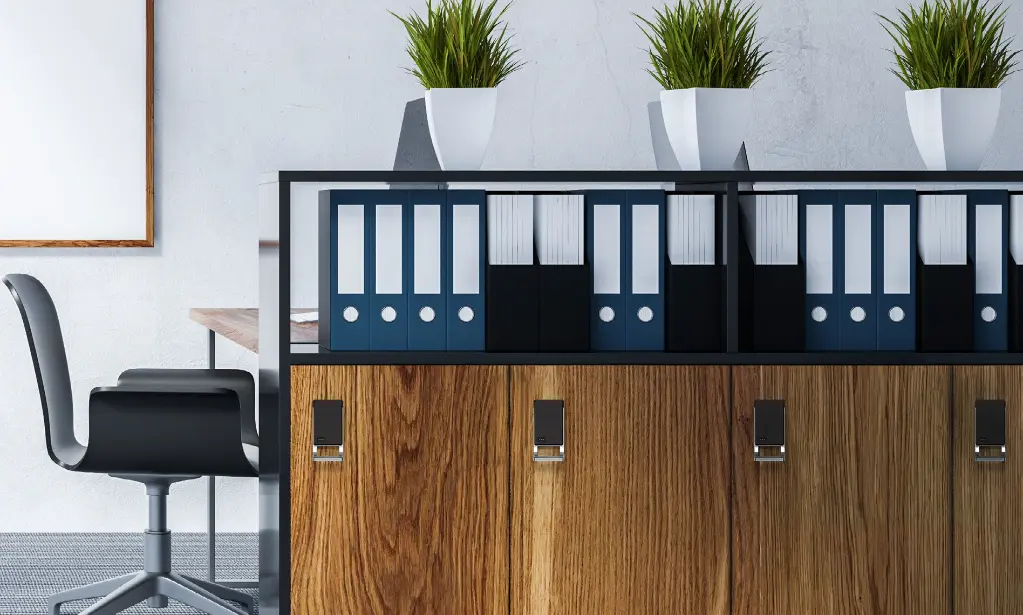

• Workplace and employee lockers

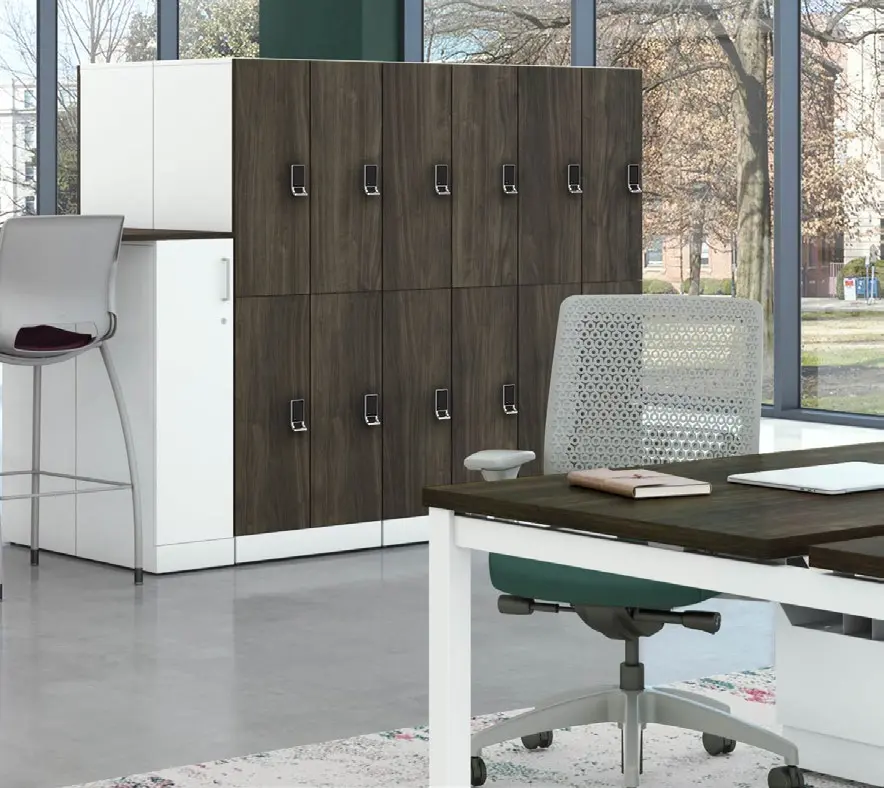

• Hot-desking and end-of-trip facilities

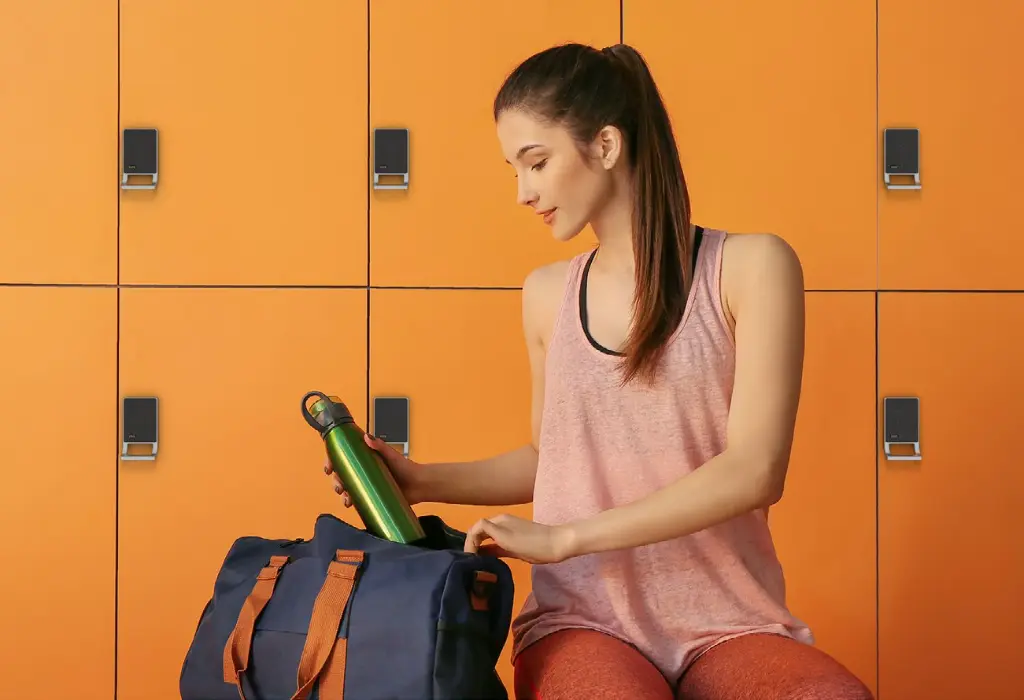

• Gym and fitness centre lockers

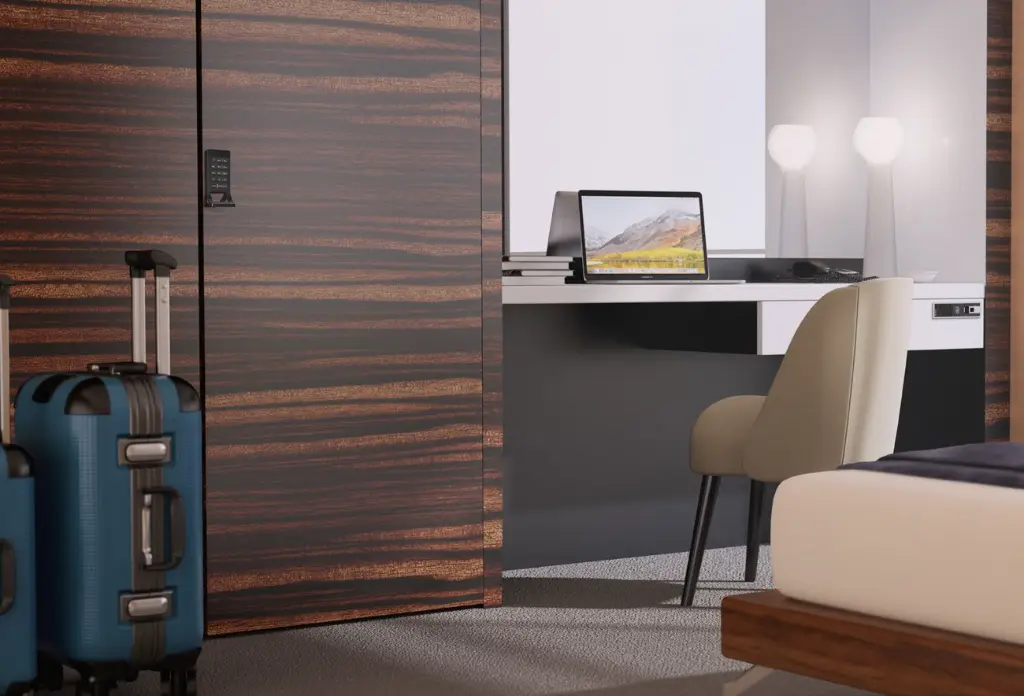

• Hotel and guest-room storage
• University and education lockers
• Healthcare facilities
• Office cabinets
• Personal storage units
• Parcel collection lockers
• Shared public storage

The Wet Area Digilock Curve Digital Combination Lock is a strong choice for facilities needing modern keypad and mobile access in humid or moisture-prone environments, with the flexibility to operate as a stand-alone lock or as part of a fully networked locker system.

Please note: IP55 provides protection against water jets and moisture but does not make the lock suitable for permanent immersion or installation inside shower cubicles where it will receive constant direct water exposure.

• Lock Type: Digital Combination / Smart Lock
• Environment: Indoors / Outdoors / Aquatic centre lockers / Pool change-room lockers
• Suitability: Metal Lockers, Plastic Lockers, Laminate Lockers
