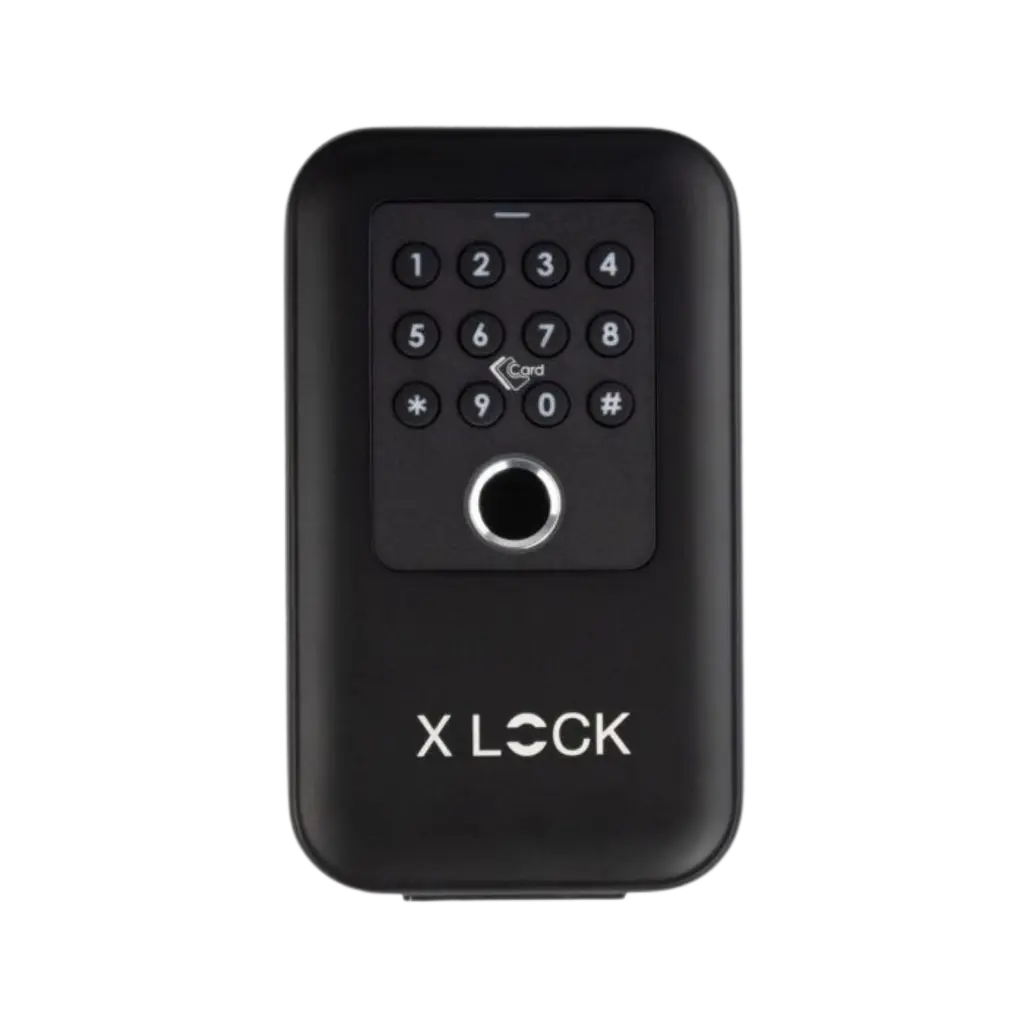

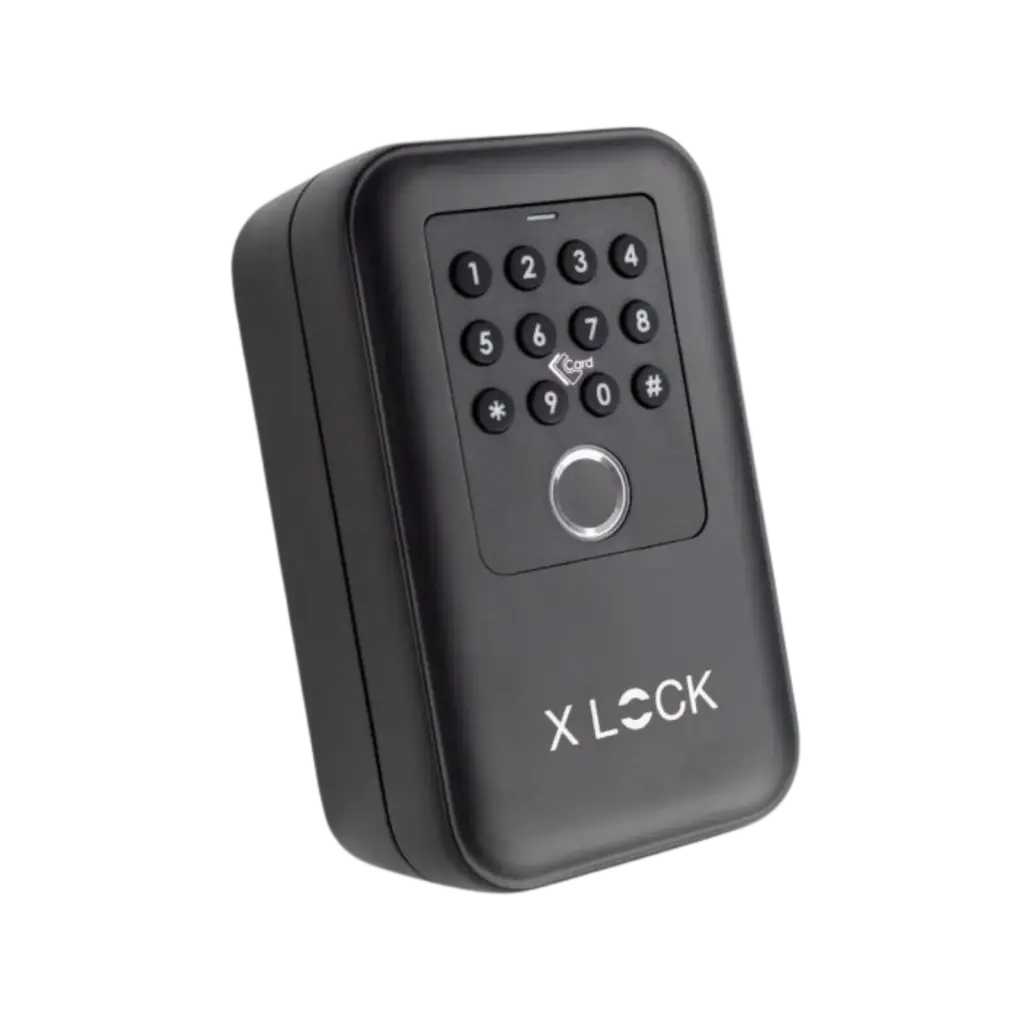

XLOCK SB50 Smart Digital Storage Box

The XLOCK SB50 Smart Digital Storage Box is a secure, weather-resistant electronic storage solution designed for controlled access to keys, access cards and other small valuables.

Combining a rugged steel construction with multiple modern access methods, the SB50 can be opened using a PIN code, RFID card or tag, fingerprint, or Bluetooth-enabled smartphone. This makes it ideal for workplaces, commercial facilities, property management, service access, equipment rooms and other environments where secure, flexible access to keys or credentials is required.

With an IP65 rating and a wide operating temperature range, the SB50 can be installed in both indoor and suitable outdoor environments when correctly installed.

Multiple Ways to Access

The XLOCK SB50 provides a flexible range of authentication methods, allowing the system to be configured around different users and applications.

Access options include:

• Bluetooth smartphone access
• PIN code
• Fingerprint
• RFID card or tag
• Mechanical emergency key

The integrated RFID reader supports MIFARE Classic®, MIFARE DESFire® and ISO 14443A-compatible credentials.

Bluetooth App Management

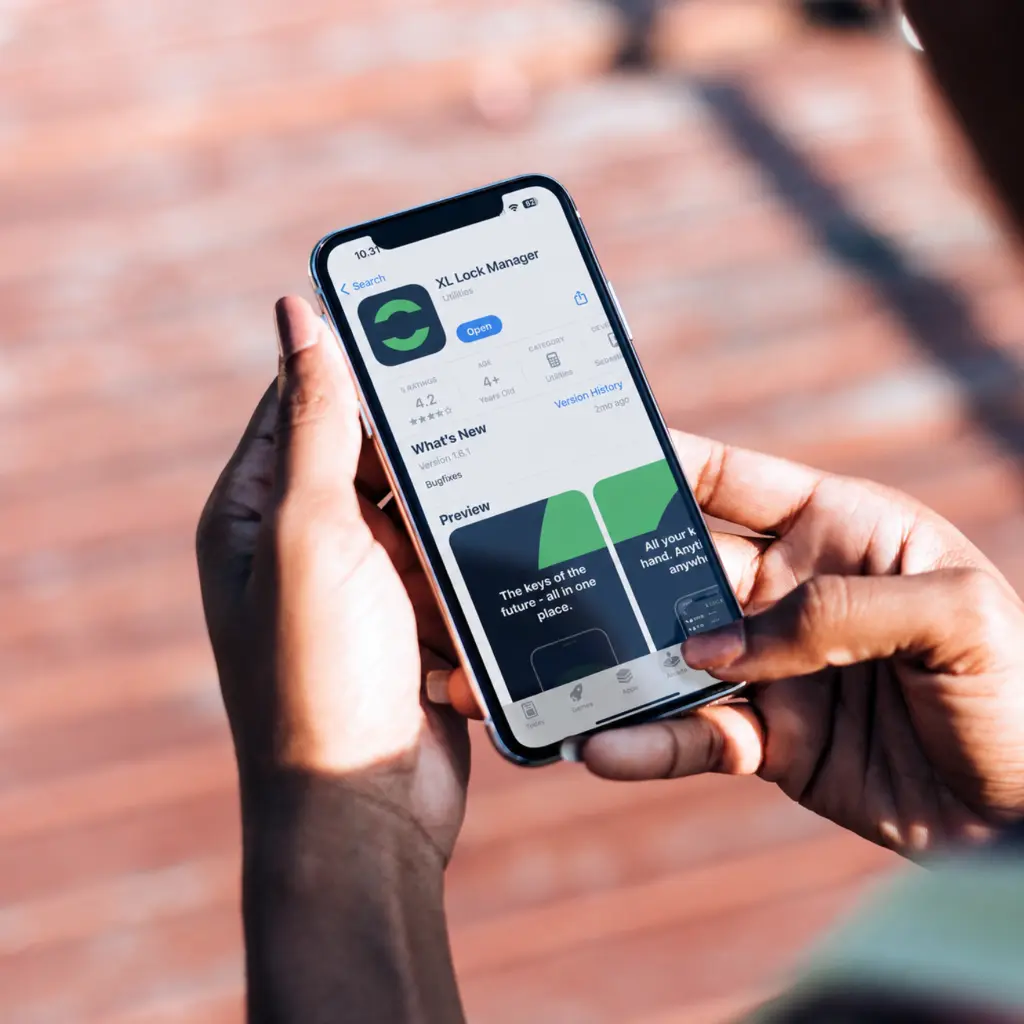

The SB50 can be managed using the XL Lock Manager App, available for compatible iOS and Android devices.

Administrators can configure users, access credentials and lock settings without requiring traditional physical key management.

The storage box also incorporates a door status sensor, allowing the lock status to be viewed through the system.

Optional Remote Management

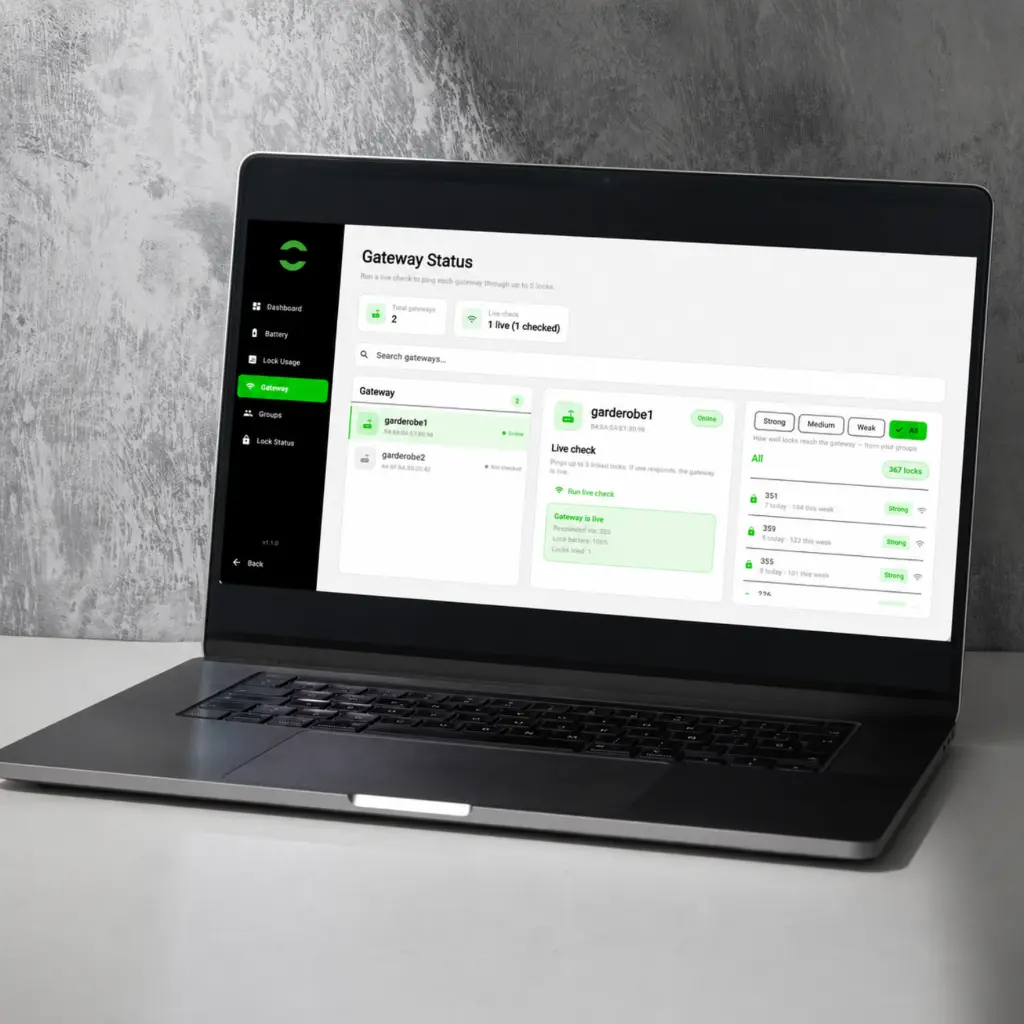

For applications requiring remote access and management, the XLOCK SB50 can be connected to an optional XLOCK Gateway.

The Gateway connects the lock to the network and communicates with the SB50 via Bluetooth, enabling authorised administrators to remotely manage settings and unlock the storage box without needing to be physically beside it.

The Gateway is available separately.

Designed for Demanding Environments

Constructed from a robust combination of metal alloy and stainless steel, the SB50 is designed for reliable everyday commercial use.

Its IP65 environmental rating provides protection against dust and water ingress when correctly installed, while its broad operating temperature range makes it suitable for a wide variety of locations.

A removable shackle and wall-mounting hardware provide additional flexibility when determining how and where the storage box is installed.

Emergency Access

The XLOCK SB50 incorporates multiple backup access methods to help maintain operation if the batteries become depleted.

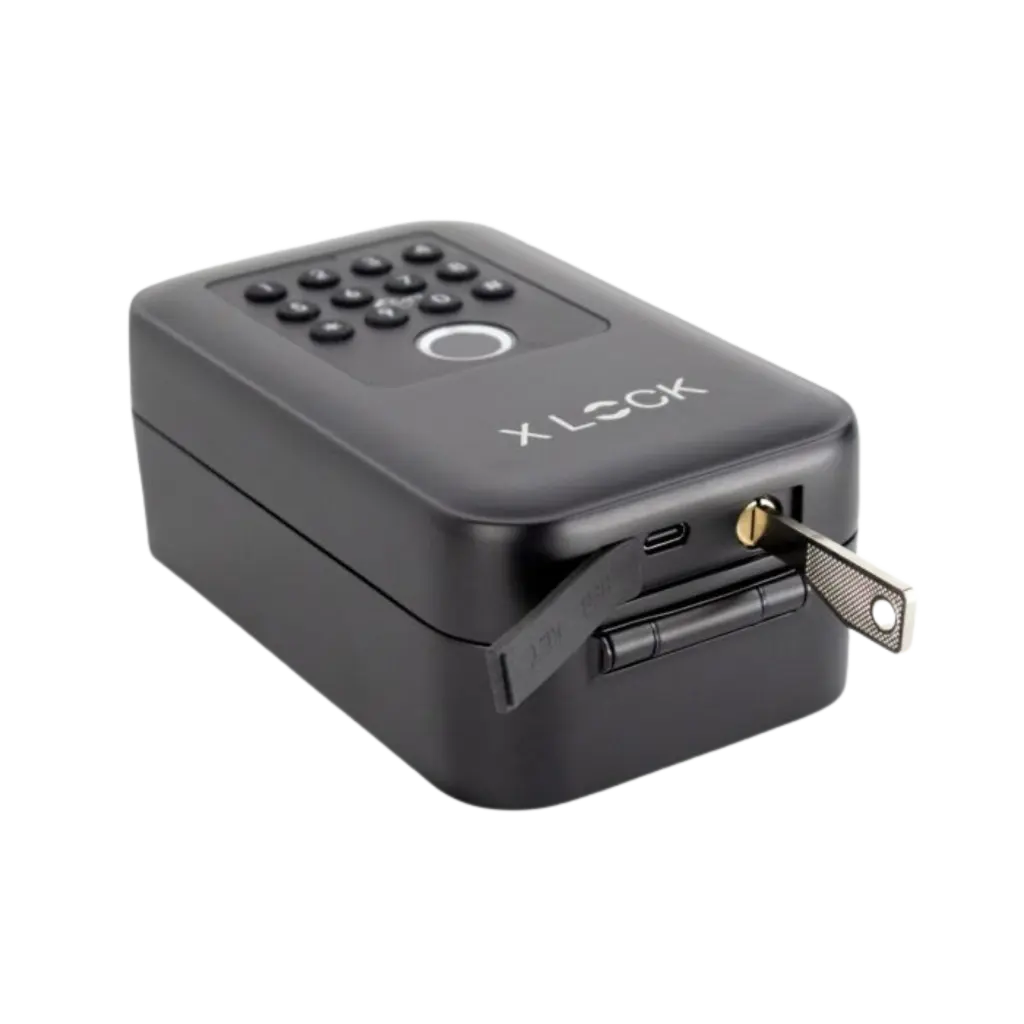

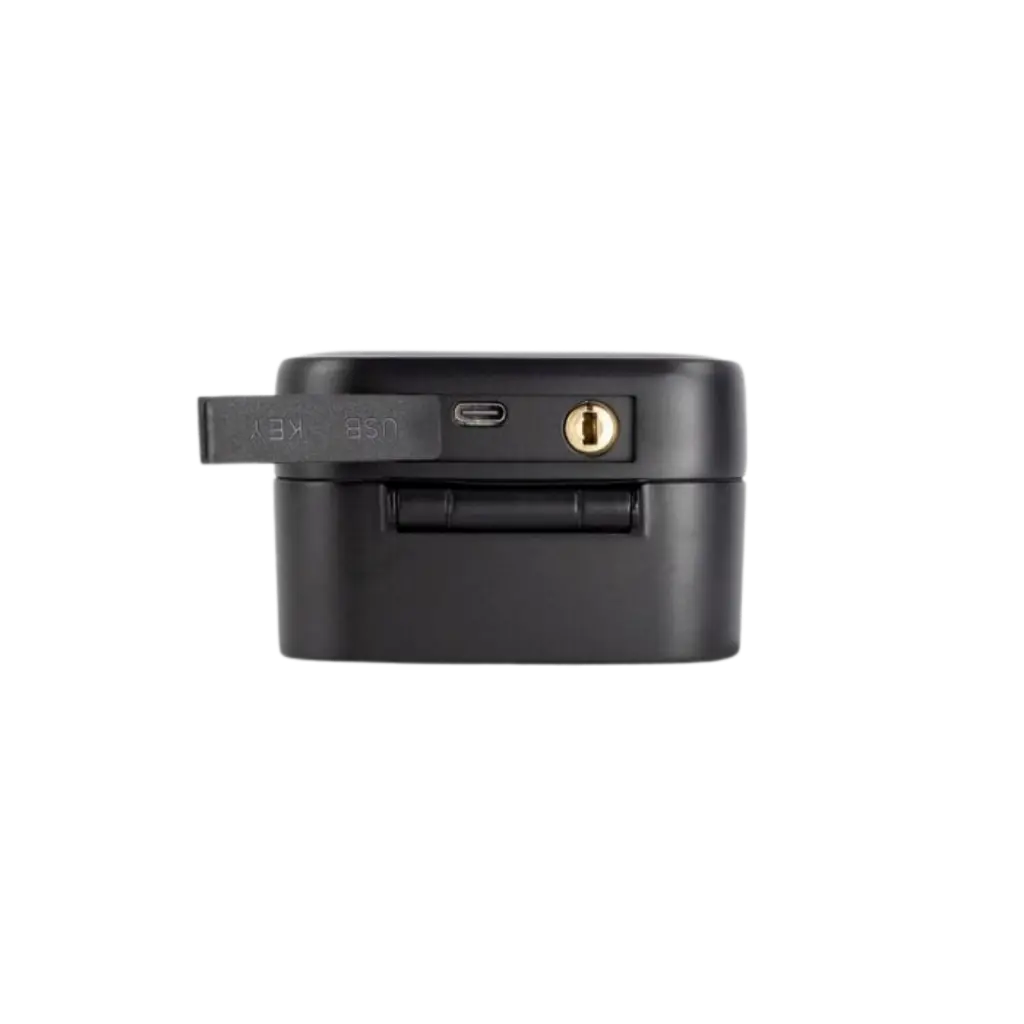

A USB-C emergency power connection allows temporary external power to be supplied to the unit, while two mechanical emergency keys provide an additional physical override method.

User & Credential Capacity

The SB50 supports a substantial number of authorised credentials, making it suitable for both individual and shared-access applications.

• Up to 200 RFID cards or tags
• Up to 150 PIN codes
• Up to 100 fingerprints
• Smartphone access through the XL Lock Manager platform

Product Specifications

Model: XLOCK SB50 Smartbox 50
External Dimensions: Approx. 145H × 86W × 55-56D mm

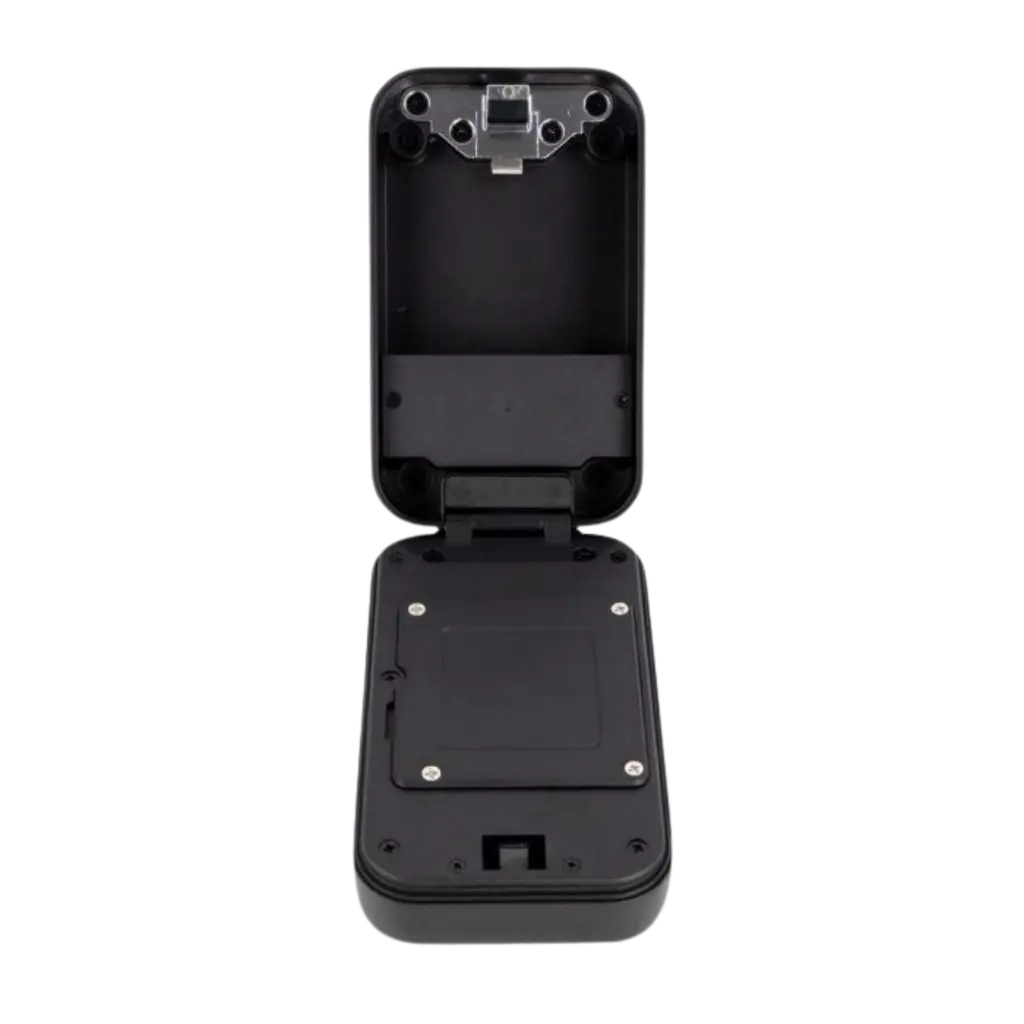

Internal Dimensions: Approx. 80 × 95 × 20 mm
Construction: Metal alloy and stainless steel
Environmental Rating: IP65 when correctly installed and used
Operating Temperature: Approx. -20°C to +55°C

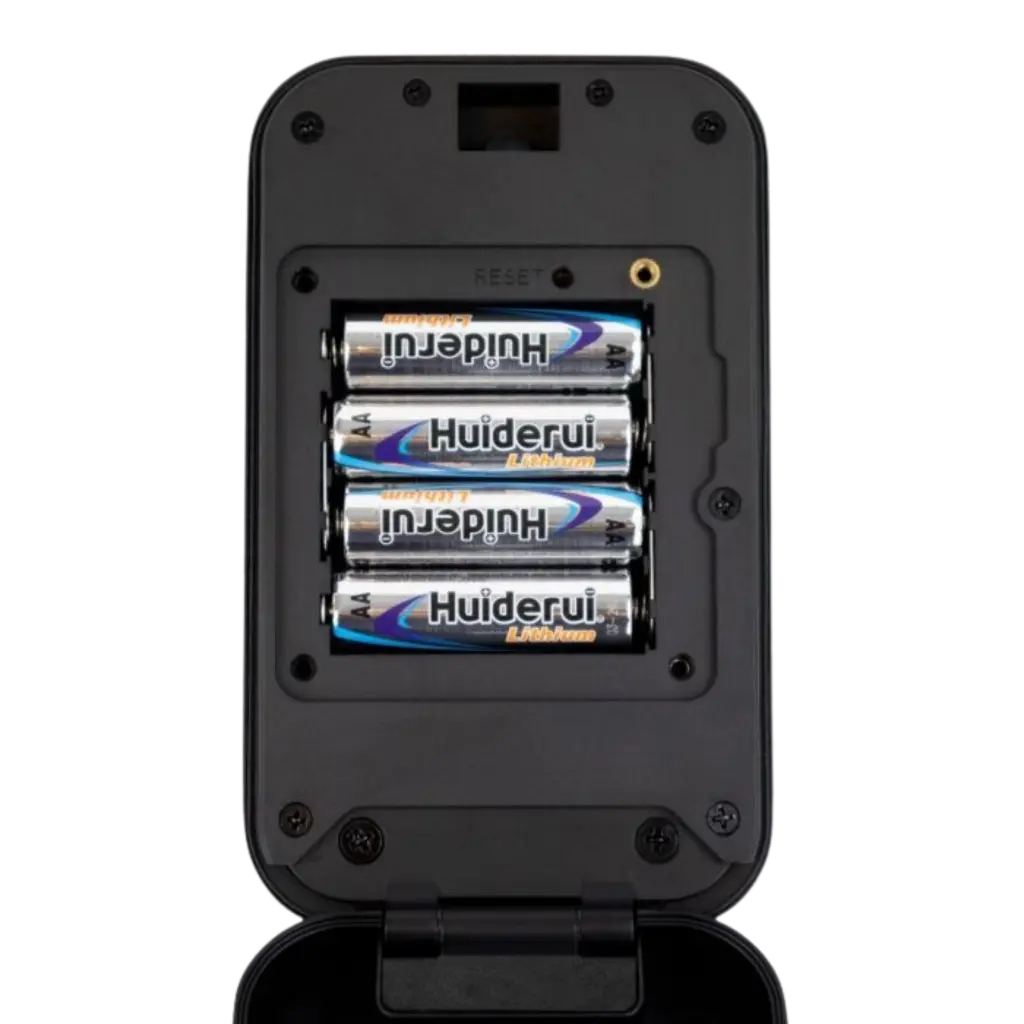

Power: 4 × AA lithium batteries
Battery Life: Up to approximately 20,000 opening cycles / 2+ years depending on usage and operating conditions
Emergency Power: USB-C connection
RFID Compatibility: MIFARE Classic®, MIFARE DESFire® and ISO 14443A
Connectivity: Bluetooth and NFC/RFID
Optional Remote Connectivity: XLOCK Gateway

Access Methods

• Smartphone via Bluetooth
• RFID card
• RFID tag
• PIN code
• Fingerprint
• Mechanical emergency key

Typical Applications

The XLOCK SB50 is suitable for secure management of keys and small access items across a wide range of environments, including:

• Commercial buildings
• Facility management
• Offices and workplaces
• Industrial facilities
• Warehouses
• Property management
• Maintenance and service access
• Equipment rooms
• Accommodation facilities
• Shared-access buildings
• Secure key handover locations

What's Included

The XLOCK SB50 is supplied with:

• XLOCK SB50 Smart Digital Storage Box
• 2 × mechanical emergency keys
• USB-C cable
• Removable shackle
• Wall mounting hardware

Batteries and optional XLOCK Gateway may be supplied separately depending on configuration.

Secure Key Access Without Traditional Key Management

Whether it is being used for contractor access, facilities management, shared keys or controlled equipment access, the XLOCK SB50 Smart Digital Storage Box provides a compact and flexible way to securely manage access.

With PIN, RFID, fingerprint and smartphone authentication combined with optional remote management, the SB50 brings modern access control technology to a simple, rugged key and valuables storage solution.

Part of the XLOCK Access Control Range

The XLOCK SB50 can form part of a broader XLOCK smart access control system, alongside compatible XLOCK electronic locker locks and other connected access products.

This allows businesses to use a consistent access method across multiple applications, including lockers, key storage and controlled-access points. Depending on the system configuration, users can be managed through the same XLOCK platform using compatible credentials such as smartphones, RFID cards or tags.

For larger installations, this provides a more streamlined approach to managing access across different types of storage and locking hardware.

• Lock Type: Digital Combination / Smart Lock
• Environment: Indoors, Outdoors, Wet Areas
